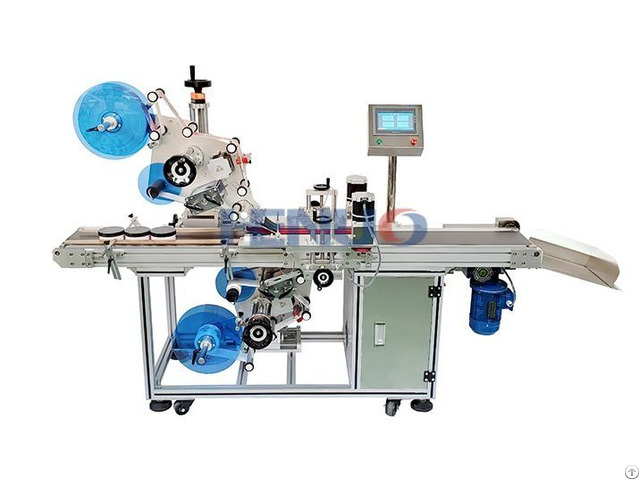

Automatic Top And Bottom Labeling Machine - China

HNTB-836 is a fully automatic top and bottom labeling machine designed to simultaneously or in one go apply adhesive labels on both the top and bottom surfaces of products.

This top and bottom labeler is ideal for labeling flat and regular-shaped products such as food trays, medicine boxes, cosmetic packages, folders, cards, and cardboard cartons on automated production lines.

Top And Bottom Labeling Machine HNTB-836 - fully automatic top and bottom labeling machine:

HENUO Machinery is a professional top and bottom labeling machine manufacturer, supplier, and factory in China, providing custom labeling machine solutions for global customers.

As an experienced labeling machine exporter, we focus on delivering industrial automation equipment for packaging lines in food, pharmaceutical, cosmetic, and daily chemical industries.

Our machines are designed for export markets with stable performance and long-term reliability.

The HNTB-836 supports OEM customization and factory direct supply, making it suitable for different production requirements across global markets.

Whether you need a standard model or a custom-designed labeling solution, HENUO provides flexible manufacturing and technical support to meet various labeling applications.

This fully automatic top and bottom labeling machine is widely used in export packaging production lines, helping customers improve efficiency, reduce labor costs, and ensure consistent labeling quality in high-speed industrial environments.

Features of Top And Bottom Labeling Machine

Model HNTB-836

Label size Length：6mm～350mm Width：15mm～120mm Outer roll dia.

(mm)：φ280 Inner roll dia.

(mm)：φ76mm

Product size Length：40mm～400mm Width：40mm～250mm Height：10mm～150mm

Labeling speed 40～120pcs/min

Labeling accuracy ±1mm

Power source 220V 50HZ

Power 3KW

Dimension 1600mm×780mm×1400mm

Weight 180KG

1 - Efficient dual-label synchronization:

complete both top and bottom labeling in one pass without the need for a second flip; the combined model can be split into two independent flat labeling machines.

2 - High-precision stability:

With fine-stepping/servo motor and label correction, the labeling accuracy typically reaches ±1 mm.

3 - Multi-degree-of-freedom adjustment:

The head is adjustable in six directions (X/Y/Z), allowing quick adaptation to products of different sizes.

4 - Durable and Smart:

It predominantly features a stainless steel body, equipped with Panasonic/Siemens PLC and touch screen, capable of 24-hour continuous operation, and incorporates features such as counting, parameter protection, and fault indication.

5 - High scalability:

It can be equipped with a coding/printing module to print production dates, batch numbers, and barcodes.
