China Famous Brand High Efficiency Small Hard Soft Candy Making Machine Production - China

price: contact company for price

China Famous Brand High Efficiency Small Hard Soft Candy Making Machine Production

Products Photos Catalog Hard Soft Candy Photos Catalog

1 - The introduction of the whole line

The hard candy production line is consisted by the sugar cooking machine, cooling table, batch roller, rope sizer, forming machine, cooling slifter and packing machine can produce hard candy with different shape.

Electrical integration control of the whole production line, easy to control the operation, large output, high efficiency, no waste of sugar, is the ideal equipment to produce the great hard candy.

2 .

Main production flow chart

Sugar cooking →sugar syrup cooling →sugar kneading →sugar rolling→ rope sizer →forming hard candy → cooling→ automatic packing

3 - The main introduction of the equipment

1)HTL-200L Electricity sugar cooking pot


Characteristics

The machine use electric heating.

It has the characteristics of big heating area, high heating efficiency, heat well-distributed, short heating time and the temperature is easily to be controlled.

The materials are stirred by scraping the bottom and sides of the pot, no stick on the pot, no stirring dead angle and the stirring is homogeneous.

The outside and inside of the pot are formed of one body.

It is made of standard SUS 304, accord with food standard health requirements and safe accessories are enough.

The machine appearance is beautiful.

It is easy to install and operate, safe and reliable.



Application

It is widely used in food processing such as candy, pastry, lotus paste, bean paste, jam, meat paste, and preserved fruit.

It is also used in daily chemicals and pharmaceutical industries.

Main technical

Capacity

200L

Pan inner diameter

800mm

Conduct oil

320#

Stirring power

1.5kw

Total power

26kw

Stirring speed

30rpm

2)Water circle cooling table


Main technical

Application

Using water for cooling

Dimension

2200×1200×800mm

Materials

Full stainless steel.

304

3)batch roller



Characteristics

Candy batch roller is mainly used for prick roller circumgyrate in the same time so that extrude and press sugar from thick to thin.

It’s the main equipment that making hard candy, cream candy and lollipop.

The machine is characterized with unique features such as reasonable structure, superior performance, and pleasant appearance, easier operation and maintenance.

Main technical

Dimension(L*W*H)mm 2200×700×1400

Voltage (v) 380

Total power (kw) 0.75

The weight of the candy batch 35kg-50kg

Weight kg 500

4) rope sizer



Characteristics

This machine is the main equipment to produce hard candy and milk candy and has the advantages of reasonable structure, easier operation, and high pressure capacity and so on.



Main technical

Dimension(L*W*H)mm 1200*700*1300

Voltage(v) 380

Power (kw) 2

Weight (kg) 500

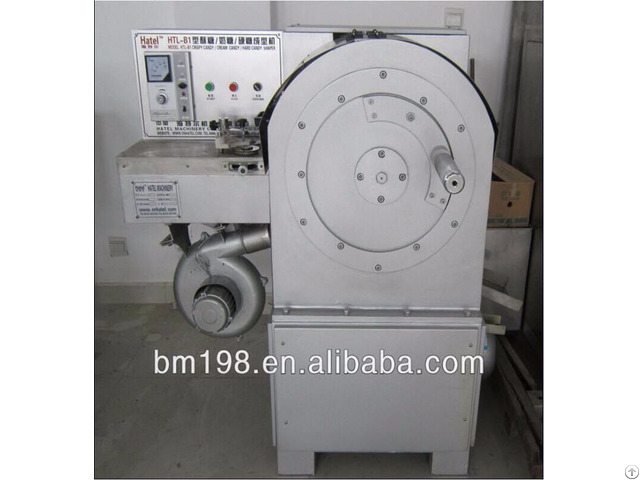

5)HTL-B1 hard candy forming machine



Output: 1-3T/8h

Total power: 2.2kw

Voltage: 380v

Dimension(L*W*H): 1500* 1100*1200mm

Weight: 650kg

6)cooling sifter




Main technical

Voltage 380 V

Power 0.75 KW

Weight 160 kg

Dimension (L*W*H) 3000×500×400 mm


Company Contact:


  • Phone: +86 159 00908664

  • Address: Taidong Industrial Garden, Yancheng sity, China, Dongtai , Jiangsu , China

  • Email: Email


Published date: November 7, 2016

  • Business Description: candy making machine, candy packing machine, chocolate making machine, chocolate packing machine, candy making equipment, bakery equipment, snack food processing equipment, biscuit making machine
