Flp 6035 Pipe Profile Fiber Laser - China

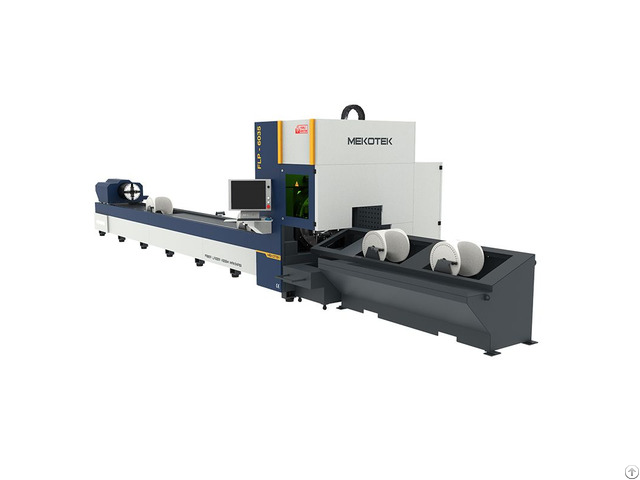

FLP-6035 fiber laser tube profile cutting machine.

It is a small and medium-sized metal laser tube profile cutting machine with production power of 1000w, 2000w, 3000w, 4000w, 6000w.

Maximum cutting length 6000mm, diameter 350mm! Fiber laser cutting machine is our product with very competitive price.

Technical Specifications

FLP-6035 fiber laser cutting machine for tubes is capable of cutting tube profiles with diameter of 6100mm, Yaskawa or Delta servo motor system, 7000kg steel precision machining fuselage.

Feature

Maximum Load Capacity (Sheet/ Profile) 850 kg

Z-Axis Travel (mm) 240 mm

XYZ Axis Slide 4- point ball contact / 4-point ball cage

XY Axis Drive System Frame / Frame

Z-Axis Drive System Ball screw / Ball screw

XY Axis Speed (Maximum Speed) 80 m/min

Z- Axis Speed (m/ min) 30 m/ min

XY Positioning Accuracy (mm) ± 0.05 mm

XY Repetition Accuracy (mm) ± 0.03 mm

Maximum Profile Length (mm) 6100 mm

Maximum Profile Size (mm) Ø350 mm

Laser Resonator Han’s Laser / Raycus / MAX

Laser Power 1000W, 1500W, 2000W, 3000W, 4000W, 6000W, 12000W, 20000W, 30000W, 40000etc

CNC System Cypcut / ESA / Mekotek

Laser Cutting Head BOCI / Han’s / Raytools

Auxiliary Cutting Gas Air / Oxygen / Nitrogen

Cooling Method Water cooling / Air cooling

Machine Weight (kg) 7000 kg

Machine Dimensions (mm) 2670 × 11000 × 2370 mm

Graphic Formats DWG / DXF / STP

Voltage/Frequency 380V, 220V /50 Hz, 60Hz

Certificates CE / ISO

Warranty 2 years

FLP-6020 Cutting Thickness

Thickness (mm) 1000W 2000W 3000W 4000W

Carbon Steel 8 mm 12 mm 15 mm 18 mm (Maximum 20 mm)

Stainless Steel 3 mm 5 mm 6 mm 8 mm (Maximum 10 mm)

Aluminum 2 mm 3 mm 4 mm 6 mm (Maximum 8 mm)

Meter 2 mm 3 mm 4 mm 6 mm Wanxuan Laser offers advanced pipe profile fiber laser machines designed to meet the growing demand for precision tube and pipe cutting in a wide range of industries.

Whether you're processing round, square, or irregular pipes, our fiber laser tube cutting machine delivers unmatched efficiency, accuracy, and speed.

As a professional pipe profiling laser cutter manufacturer, we provide turnkey solutions tailored to your material, thickness, and production volume.
