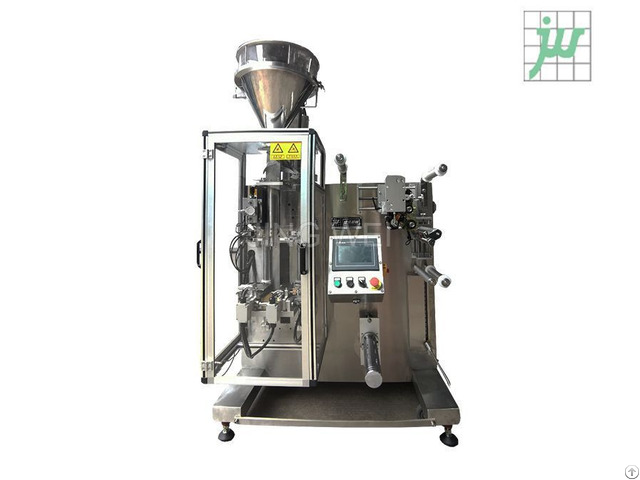

JW-BJ320-Automatic Pillow Type Filling and Packing Machine

This back sealing VFFS packing machine is the "middle bag machine" with the minimum size of back sealing Intermittant packaging machine.

Simple operation, it can realize the switching of three side sealing to back sealing.

It can equipped with a variety of metering feeding structure such as volumetric type, auger filling type, piston pump type, drawer type and multi-header weighing type, so it can correspond to more kinds of filling materials.

Advantage & Features

1 - Easy Operation, PLC control, HMI operation system, simple maintenance.

2 - Filling: Vibrating filling

3 - It can be Single powder packing, single granule packing or single powder-granule mixed packing.

4 - Machine material: SUS304

5 - Shifting three side to four side sealing.

Packing Application

Suitable for snack foods like pop corn, shrimp chips and etc; nuts such as peanut, walnut and etc; herbal granule powder and etc; seasoning sauces, flavour oil and son on.

Technical Parameters

Packing Speed 20-100 bags/min(depends on the bag and filling material)

Filling capacity 5-100g (Depends on material and filling way)

Pouch length 50～160mm

Pouch width 50～150mm

Sealing type three sides sealing or back sealing

Sealing steps Two steps

Film width 100-320mm

Max.

rolling diameter of film ¢400mm

Dia of film inner Rolling ¢75mm

Power 3KW, single phase AC220V, 50HZ

Compressed air 0.4-0.6Mpa, 300 NL/Min

Machine dimensions (L)1000mm x(W)1000mm x(H)1200mm(Exclude the measuring device)

Machine weight 450KG
