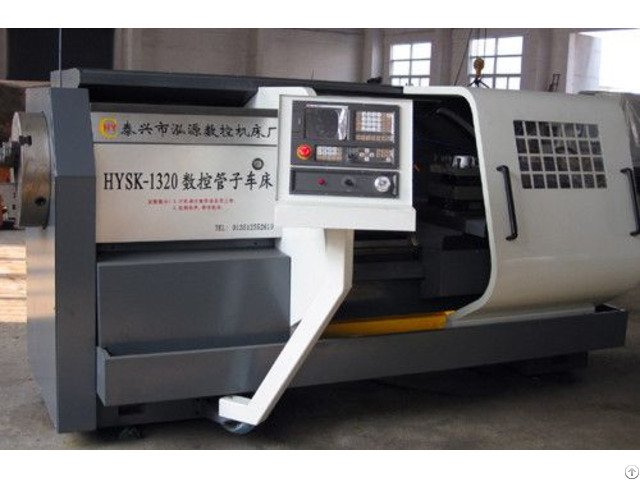

Lathe Machine For Drill Pipe End Face - China

This series machine is for turning drill pipe end face or casing pie thread.

It is 2-cordinate CNC machine tool.

It has big power and good rigidity.

It can cut excircle, inner hole, circular arc, taper, step, chamfer, metric/inch thread etc:  Drill pipe excircle surface/inner hole/end face turning after upsetting

 Tool joint semi-finishing turning

 Old threading repairing

 Drill pipe friction welding trimming machining

 PDM drill parts machining

Items Unit HYSK-1320 HYSK-1325

Max.

swing diameter over bed mm φ680 φ680

Spindle center height mm 1100 1100

Manual chuck diameter mm φ500 φ630

Max.

holding diameter mm φ195 φ235

Max.

swing diameter over saddle mm φ280 φ280

Spindle bore diameter mm φ200 φ250

Working range of diameter mm 80～195 80～235

Working range of length mm 1000 1000

Spindle speed r/min 25～420 25～300

Main motor power kW 11 15

X-axis travel mm 400 400

Z-axis travel mm 1000 1000

Pneumatic chuck diameter mm φ530 φ630

Pneumatic chuck jaw travel mm 20+7 29+6

Roughness mm Ra1.6～Ra3.2 Ra1.6～Ra3.2

Machine weight ㎏ 5600 6300

Machine dimension(L×W×H) mm 3800*2200*2000 3800*2200*2000
