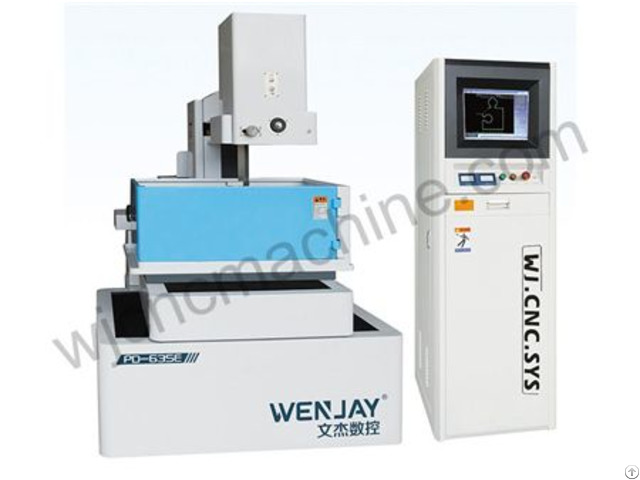

Medium-Speed Wire-Moving Linear Cutting-Servo High-End PD-SE

Product category: Medium-speed wire-moving linear cutting machine tool

Product model: PD-SE

Brand: Wenjie CNC

Manufacturer: Taizhou Wenjie CNC Equipment Co., Ltd.

Product description: Medium-speed Wire cut Electrical Discharge Machining (MS-WEDM for short) belongs to the category of reciprocating high-speed wire-moving wire cut electric discharge machine, which achieves the multiple cutting functions on high-speed reciprocating wire-moving wire cut electric discharge machine and is commonly known as "medium wire-moving cutting".

Wenjie MS-WEDM has a good taste, high quality, super stability and low price!

1 - It adopts the semi-closed loop control to verify and set the structure and parameters accurately in the proofreading link of the entire driving system, so as to further improve the positioning accuracy and moving precision of the workbench drive;

2 - It has good stability, and the workbench has a strong anti-interference capability to maintain a stable running speed after the accurate calculate of load and inertia;

3 - The servo motor and ball screw are driven by means of direct connection, which has a simple structure, reduces assembly errors, has a high response speed and good dynamic and static characteristics.

Machine tool type PD-32SE/ST PD-40SE/ST PD-50SE/ST PD-63SE/ST

Worktable Size (W*L) 760×520mm 850×600mm 1000×750mm 1170×830mm

Max trip of X, Y-axis of the worktable (Y×X) 400×320mm 500×400mm 630×500mm 800×630mm

Max cutting thickness 250mm 250mm 300mm 300mm

Max load weight of stability linear cutting machine 300kg 500kg 800kg 1000kg

Max cutting efficiency 180mm²/min

Max processing current 7A

Optimum surface roughness First cutting Ra≤2.3um, second cutting Ra≤1.6um, third cutting Ra≤1.0um

Cutting accuracy Line≤±0.0025mm, taper≤±0.01mm

Hop accuracy 0.01mm/0-200mm, 0.015mm/0-350mm, 0.02mm/0-500mm

Max cutting taper ±3°/80mm

Electrode wire diameter range (molybdenum wire) 0.12-0.25mm(standard configuration 0.18mm)

Driving mode X, Y, U, V-axis servo (Panasonic servo) or stepper ( 5-phase 10-pat), Z-axis electric silent elevation

Cutting fluid box configuration High pressure slow wire filtration, volume 100L

Cutting fluid ratio Dick liquid mixed with pure water, concentration 8-12

Power consumption of complete machine ＜2KW

Power supply Three-phase four-wire 380VAC/50HZ

Host weight 1860kg 2160kg 2750kg 3450kg

Host outline size (L*W*H) 1570×1100×1700mm 1600×1220×1700mm 1850×1400×1800mm 2070×1655×2060mm

Packaging outline size (L*W*H) 1720×1300×1800mm 1850×1420×1800mm 2050×1600×1900mm 2340×2100×2160mm
