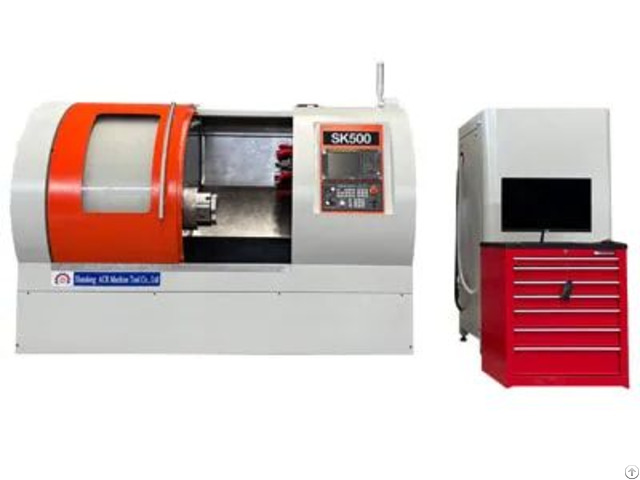

Sk 500 Sealing Ring Cnc Lathe Machine - China

This series of machine tools is a horizontal CNC sealing ring lathe produced by our company.

The overall slanting bed, which ensures accurate accuracy advanced CNC system and NGU integrated circuit system, reduce the failure rate, and can troubleshoot.

The machine adopts the ovral45" inclined bed design and linear ball track to effectively ensure the accuracy of the machine tool.

All drive motors are made of original servo motors, special sealing ring turning fixtures and servo turret, which call meet the processing accuracy requirements of non-standard seals of any material, any specification and any size.

At the same time, it is equipped with knife sharpener crusher and chip conveyor.

ACR Machine Tool SK500 Specifications:

Swing Over the Bed: 600 mm

Maximum Turning Diameter: 550 mm

Maximum Turning Length: 430 mm

Spindle Speed: 4500 rpm

Spindle Power: 7.5 kW

Spindle Nose Specification: A2-5

Spindle Bore Taper: Mohs 5#

Spindle Through Hole Diameter: 52 mm

Manual Chuck Size: 10 inches

Number of Tool Positions: 12

Standard O.D. Knife Size: DIN69880 VDI20 (VDI Servo Turret)

Inner Diameter Knife Size: Ф20 mm

Tool Post Positioning Repeatability: ±0.5"

Tool Change Time of Adjacent Tool: 0.3 s

X/Z Axis Travel: 250 mm (X-axis) / 350 mm (Z-axis)

X/Z Axis Rapid Traverse: X: 18 m/min

X/Z Axis Servo Motor Torque: X-axis: 10 Nm / Z-axis: 12 Nm

Cooling Box Volume: 120 L

Protection System: Fully enclosed large protective cover

Hydraulic System: P=3.5 MPa, Q=30 L/min

Lubrication System: Regular quantitative lubrication

Positioning Accuracy: X: 0.008 mm

Repeat Positioning Accuracy: X: 0.004 mm

Clamping Device: SK-09" Manual (Thousand Islands)

CNC System: FANUC 0i-TF

Machine Weight: 2800 kg

Machine Size (Length × Width × Height): 2080 mm × 1600 mm × 1600 mm
