Sy Hp300 Mobile Cone Crusher - China

Working Principle

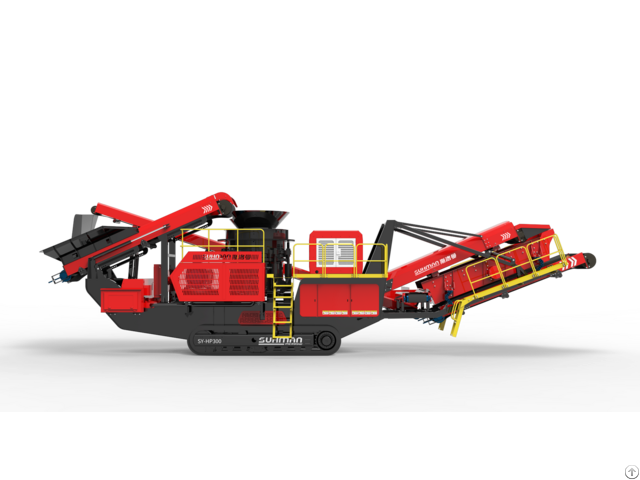

The SY‑HP300 is a crawler-mounted mobile cone crusher designed for high-efficiency secondary or tertiary crushing.

It uses a multi-cylinder hydraulic system that drives an eccentric rotating shaft, which moves the inner cone (mantle) in a gyratory motion inside the fixed outer cone.

This creates high-pressure compression of the material within the specially shaped crushing chamber, based on the principle of inter-particle lamination.

By combining increased rotational speed with an extended stroke, the crusher achieves high crushing ratios, producing cubical and fine-grained end products with minimal needle-shaped fragments.

Hydraulic adjustment allows for precise control of the discharge opening (typically adjustable within 30–50 mm), while its overload protection system safeguards between the mantle and concave when hard, uncrushable items enter, ensuring safe and uninterrupted operation.

Application

The SY‑HP300 excels in several demanding environments: Mining operations: Ideal for processing both metal and non-metal ores (e.g., gold, copper, iron), delivering precise particle sizes required for downstream processing stages.

Manufactured sand production: Integrated within sand-making lines, it delivers high-quality, well-graded sand for concrete and mortar.

Construction aggregate: Tailored for producing aggregates for concrete and asphalt applications, supporting large-scale production plants thanks to its 200–300 tph capacity.

Urban infrastructure and demolition waste: Its tracked chassis enables easy relocation in confined spaces, making it well-suited for roadworks, building demolition, and recycling projects.

Overall, the SY‑HP300 strikes a balance between portability and output, delivering consistent performance in mobile crushing setups.

Company Contact:

• Posted By: Anhui SUHMAN Engineering Machinery Co., Ltd.

• Phone: +86 13761556279

• Address: No.43 Tangkou Road, Economic Development Zone, Feixi County, hefei , Anhui , China

• Email:

• Website: https://crawlercrusher.com/

• Business Description: Anhui SUHMAN Engineering Machinery Co., Ltd. is a professional manufacturer of mobile crushers based in China, with years of experience in producing high-quality crushing and screening equipment.

  Suhman offers a full range of mobile crushers and screeners, including:

  - Mobile Jaw crushers

  - Mobile Impact crushers

  - Mobile Cone crushers

  - Mobile screening plants

  - Mobile Sand-Making Machine

  All machines can be customized to suit your project.

  As a manufacturer specializing in mobiles-breaking equipment, we also offer customization services, including:

  -Configuration adjustments

  -Customized logos and colors

  -Optional components according to the specific needs of your project

  Do not hesitate to contact us to discuss your project in plus detail.

  We would love to collaborate with you.
