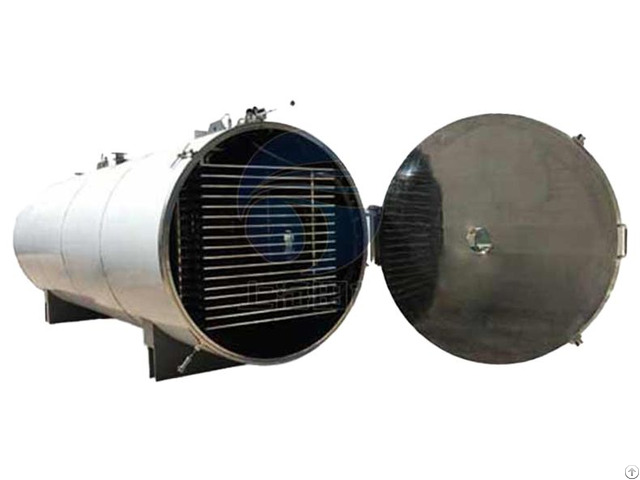

Toffon Freeze Dryer Tf Fzg 50 - China

Product Overview​

The TF-LYO-50 freeze dryer of TOFFON is manufactured through standardized production processes.

It is designed to meet the processing and production demands of diverse items, including foods, traditional Chinese medicinal herbs, and industrial raw materials.

Crafted with high-grade materials and integrated with widely recognized imported components in the industry, it also applies cutting-edge manufacturing techniques.

As a result, this equipment fully conforms to GMP standards.

​

Equipment features​

Both the freeze-drying chamber and partition strictly conform to GMP specifications.

The cylinder is constructed from 304 stainless steel, and its interior is mirror-polished, which exceeds the manufacturing processes and standards of typical Chinese food freeze dryer manufacturers.

​

It has an integrated design combining the freeze-drying chamber and cold trap, adopting a layout with the chamber in the front and the trap at the rear.

An observation window with lighting is installed, enabling convenient viewing of the chamber's interior.

This design simplifies cleaning and eradicates sanitary blind spots.

​

The partitions are customized according to customers' needs.

The 304 stainless steel partitions are processed with surface-drawn square steel profiles, presenting a smooth surface that is effortless to clean and helps maintain excellent hygiene.

​

The water-catching coil in the cold trap is made of clean stainless steel.

Customers have the option to select either an integral or a separate structure according to their requirements.

​

Components of the refrigeration system are equipped with high-standard imported brands, boasting robust cooling capacity, rapid cooling speed, and stable and reliable performance.

​

The vacuum system provides various combinations of vacuum pumps to satisfy customer needs, utilizing high-quality vacuum pumps from AiFa Technology.

​

It utilizes an imported Omron PLC control system, facilitating easy data storage and operation.

The control system supports both automatic and manual modes, allowing for flexible switching.

Multiple sets of process settings can be configured, and formula adjustments are feasible during the drying process, enabling arbitrary steps.

​

Immersion or steam defrosting methods are employed, ensuring quick and thorough defrosting and cleaning.

​

It is equipped with a pre-freezing function, eliminating the necessity for external pre-freezing storage and reducing the risks of material liquefaction and contamination.

​

It offers process adjustment capabilities, featuring curve-controlled temperature, as well as temperature and vacuum control adjustment functions, to meet the processing requirements of different materials.

​

The intermediate oil of the partition conducts heat without relying on steam, ensuring environmental friendliness and compliance with safety standards.
