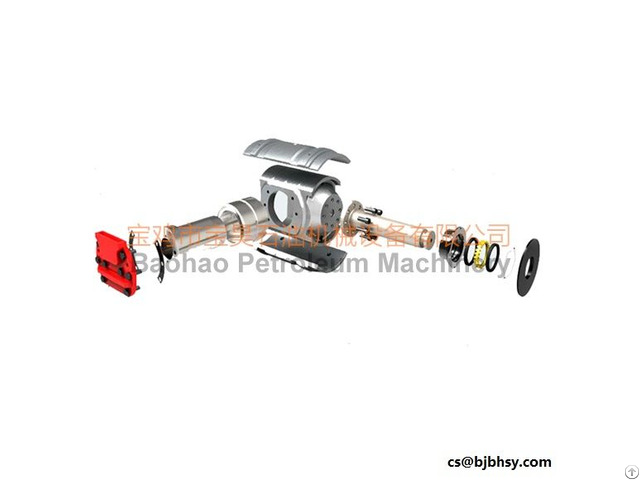

Crosshead Assembly For Drilling Mud Pump - China
price: 2800.00 Dollar US$
The crosshead is the critical part on the power end of the mud pump.
It slides in the upper and lower guide plates, motivating the intermediate draw bar to deliver driving force to the hydraulic end.
One of its ends fixes the intermediate draw bar.
The cavity connects the small end of the connecting rod through cross head pin.
The material of the crosshead is nodular cast iron with the strength of extension of more than 600MPa, which ensures high intensity and abrasive resistance.
The difference between crossheads in metric system and British system is the screw hole.
To guarantee close contact, the contact area of bore-hole of the crosshead and the conical surface of the crosshead pin shall be greater than 75%.
Company Contact:
- Phone: +86 18391737507
- Address: Chencang Road, Baoji , Shaanxi , China
- Email:
- Website: https://www.baohaooilfield.com/
Published date: July 3, 2020
- Business Description: About our company
Baoji Baohao Petroleum Machinery Equipment Co., Ltd., was founded in 2003, specializing in design, R&D, production of oil drilling equipment and technical services.
Meanwhile, it is an independent import & export corporation.
The pneumatic clutch and clutch spares, drilling mud pump parts, drawworks spare parts for oil drilling equipment we produced are served as designated products for many domestic famous professional oil equipment manufacturers, such as Sinopec, CNPC, Nanyang RG Petro-Machinery (Group) Co., Ltd., and Sichuan Honghua Petroleum Equipment Co., Ltd. Besides, Baohao also exports products to many countries and regions such as USA, Russia, Turkish and Kazakstan.
Glories of company
The pneumatic clutch and clutch spares, drilling mud pump parts, drawworks spare parts for oil drilling equipment we produced are served as designated products for many domestic famous professional oil equipment manufacturers, such as Sinopec, CNPC, Nanyang RG Petro-Machinery (Group) Co., Ltd., and Sichuan Honghua Petroleum Equipment Co., Ltd. Besides, Baohao also exports products to many countries and regions such as USA, Russia, Turkish and Kazakstan.
With its excellent and experienced technical team in petroleum machinery manufacturing as well as advanced machining and precision testing equipment, learning feedbacks from experience of use in site, continuously refines and improves product processing technology and product quality.
Baohao strictly abides the GB/TI9001-2008-ISO9001-20 08 QMS, the Industry Standard SY5138-92, SY/T6760-2010 and American API Standard during the whole production process including the delicacy management of contract execution and monitoring over in-warehouse and ex-warehouse products.
The good-quality products and service are highly commended by clients at home and abroad.
