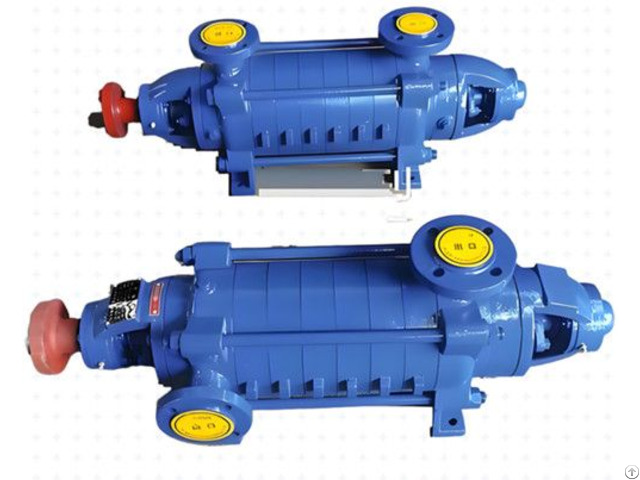

D Dg Boiler Feeding Water Pump - China

The pump is a segmental multistage centrifugal pump suitable for conveying water

and liquids with physical and chemical properties similar to water at temperatures

below 110degree celsius.

It is suitable for feedwater in marine boilers, land-based boilers, oil furnaces, as well as for boosting water supply in factories and cities.

It features

advantages such as energy conservation, compact structure, small size, lightweight, and reliable operation.

The D, DG, and DGA series multi-stage centrifugal pumps are horizontal, sectional

centrifugal pumps.

The suction inlet of the D-type is horizontal, while the DG and

DGA types are vertically upward.

The discharge outlet is vertically upward for all

types.

For shaft sealing, the D and DG types use soft packing seals, whereas the

DGA type adopts mechanical seals.

working conditions

Flow rate: 3.75 to 55 m³/h

Head: 73.5 to 666m

Medium temperature: 0 to 110 ℃

Power supply: 50Hz, 380V; 60Hz, 440V

Model Significance

DGA12-25 × 8

DG: Multi-stage Centrifugal Pump

A: Mechanical Seal Type

12: Rated flow 12.5m³/h

25: Single-direction head 25m

Grade 8: Series 8

Pump casing /impeller: cast iron, stainless steel, bronze
