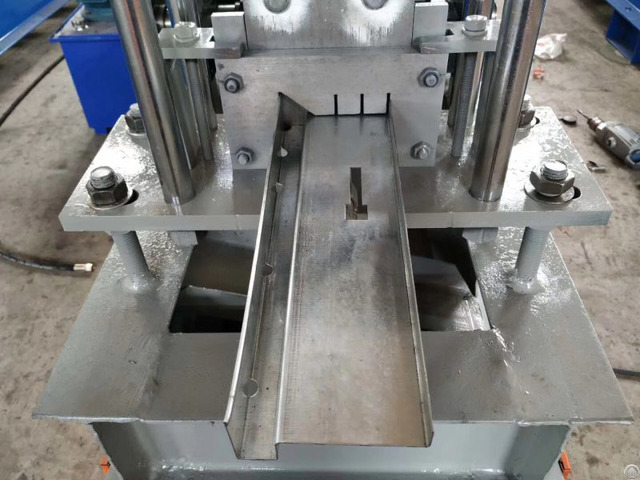

Door Frame Roll Forming Machine - China

Special designed steel door frame cold roll forming equipment

we also would like to design the Door Frame Forming Machine as per your required profile drawing

SURFACE TREATMENT

1) Processing material: steel strip

2) Material thickness: 1.0-1.5mm

3) Effective width: 120mm

4) Feeding width: 238mm

5) Main motor power: 15kw

6) Pump power: 5.5kw

7) Diameter of shaft: Ф65mm

8) Productivity: 0-12m/min

9) Roller stations: 16 forming steps

10) Roller material: No.

45 forged steel, plated hard chrome on the surface of roller

11) Active shaft material: 45#steel with high frequency surface treatment and grinding process

12) Cut blade material: Cr12 steel with vacuum heat treatment, hardness reaches 58HRC-60HRC

13) Transmission type: Gears

14) Control system: Taiwan Delta PLC computer control system

15) Power supply: 380V, 3 Phase, 50Hz(or as per your request)

TECHNOLOGY

manual decoiler→guiding device→main machine of roll forming→cutting device→ output table, electric-motor, hydraulic station, PLC control system

Door Frame Roll Forming Machine SALES TERMS

1).

Machine Price: Please contact us, we will try to give you good discount for starting our cooperation

2).

Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment

Or 100% LC at sight

3).

Package: naked with simple plastic film and loaded in one 20-feet container

4).

Delivery time: 50 working days after receipt of the deposit

5).

Guarantee: 12 months.

If any part of machine breaks, we will supply it for free.

6).

After sales service

This Cold Forming Machine is maintained free of charge for 12 months.

When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug.

Buyers should take all the fees for technicians traveling abroad, and pay 100USD\day\person.

Company Contact:

• Posted By: Botou Yangcheng Cold Forming Machine Co., Ltd.

• Phone: 15226630086

• Address: Opposite of Fuxingyuan, Xihuan Road, Botou CIty, HeiBei , China

• Email:

• Website: https://www.metalrollingmachinery.com

• Business Description: Our company, named Botou Yangcheng Cold Forming Machine Co., Ltd. is a professional manufacturer of roll forming machine.

  As an integrated company, we are specialized in developing, designing, making and debugging different kinds of roll forming machines.

  We have experienced technicians and designers, who started machine designing and making since 1993, to ensure we are the highest standard in the same industry.

  To satisfy customers with the best quality is our development principle.

  Both quality and service are guaranteed, no matter for standard machines or special designed machines.
