Double Head Fine Wire Drawing Machine - China

price: 33900.00 Dollar US$

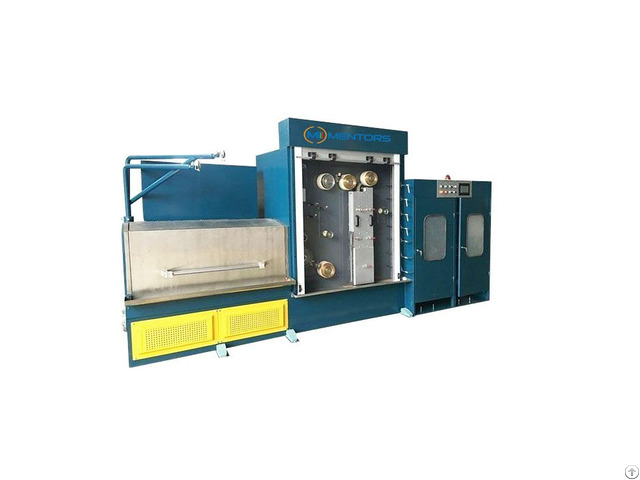

Double Head Fine Wire Drawing Machine

Products Photos Catalog Double Head Fine Wire Photos Catalog

1 - Application:

This machine is used for drawing and annealing copper wire with wire range 0.12-0.35mm, followed by single or dual spool take-up.

2-Main feature:

Finished wire is wound by 300 steel bobbin or similar size plastic bobbin.

1)Max.

Dies Qty: 24

2)Outlet wire size: 0.12-0.35mm

3)Max speed: 1800m/min

4)Dual Inverter Control 3-Parameters:

Machine type SY-DT24.2A

Inverter control Dual inverter control Drawing dies No.

/max.

24×2

Inlet diameter Ø 0.5- 1.0mm

Out diameter Ø0.12- 0.35mm

Drawing line speed 1800mpm/max

Slip ratio of m/c 13%

Fix speed capstan slip ratio 8%

Frame Welded by steel plate

Capstan Ceramic plasma capstan

Main motor 18.5 kw

Spooler motor 4kw

Annealing voltage DC 0-60V

Annealing current DC 300A

Protection type Steam or nitrogen

Spool bobbin size Ø 300mm or customization

Transmission type By timing belts

Spooler control PID Synchronous spooler

Detecting device Weight balance by swing arm

Tension control Weight balance type

Lubrication type Spray type

Brake Magnetic brake

Power source 380v 50/60 HZ or customization


Company Contact:


  • Phone: 008615252617481

  • Address: Yangshe Town, Zhangjiagang , Jiangsu Province, China

  • Email: Email


Published date: September 14, 2023

  • Business Description: Mentors is a professional manufacturer and exporter of wire drawing machine & cable making machine in wire and cable field since 2008.

    Mentors Group is able to provide a whole solutions.

    Also our engineer team with 23 years of R&D and production experience in the field of wire drawing machine and other cable making machine.

    Cost-effective,highly efficient,reliable and easy-to operate machine is what we deliver.

    The independent research and development Copper Wire Drawing Machine we have already supplied to world well-know company such as Sumitomo, Jiangxi Copper Corporation(Fortune global 500 companies).

    And New Design Remote Controlled Full Automatic cable making equipment, which can load and unload bobbin without operator, to help our customers develop faster.

    Mentors will continue to combine the advanced technology with China manufacturing advantage, provide wire drawing machine and cable manufacturing machine with European Standard to worldwide customers.
