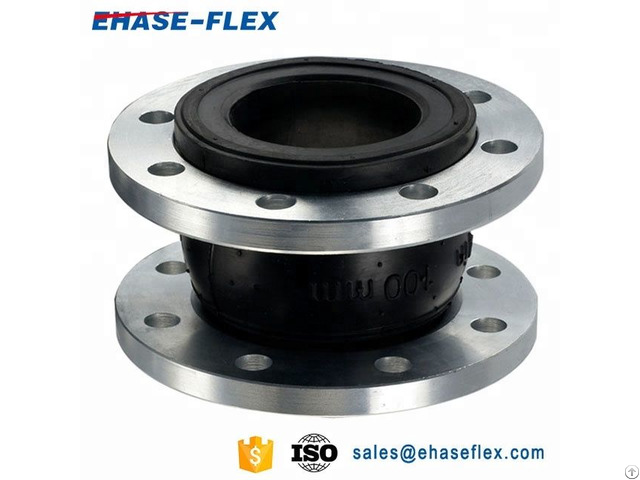

Rubber Bellows Flexible Joint With Flange Connector - China

Quick Details

Place of Origin: Zhejiang, China (Mainland)

Brand Name: Ehase-flex

Model Number: EH-10/10H

Type: Flange

Material: Neoprene, Butyl, Nitrile, EPDM, Hypalon, Natural Rubber

Technics: Casting

Connection: Flange

Shape: Equal

Head Code: Round

Product name: Rubber Bellows Flexible Joint with Flange Connector

Size: DN100

Max Temp: 60℃

Rated Working Pressure: 10bar 16bar

Bursting Pressure: 60kg/cm2

Flanges: JIS, ANSI, DIN, BS, JB.

Certificate: ISO 9001: 2000

Application: Water, Warm Water, Sea Water, Weak Acid Fluid, Soda Fluid etc.

OEM/ODM: Allowed Supply Ability

Supply Ability:

10000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details

Carton Box, Pallet or Plywood Case; As Customer's Requirement No Unacceptable Packaging Material or Bamboo Products Been Used as Packing

Port

shanghai or ningbo or Any Port in China

Lead Time :

Depends on QTY; Normally 20days or As Client's Requirement

Rubber Bellows Flexible Joint with Flange Connector

100% Before Delivery

More than 40-year experience in manufacturing Application

Water, Sea Water, Fresh Water, Warm Water, Weak Acid Fluid, Soda Fluid, etc.

Construction:

Item Parts Material

1 Outer Linner Rubber NATURAL RUBBER, NEOPRENE, BUTYL, NITRILE, EPDM, HYPALON.

2 Key Frame NYLON CORD FABRIC

3 Pressurized STEEL WIRE

4 Flanges CARBON STEEL Specification:

Dia L Movement Operating Conditions Axial Compress Axial Extension Transver Se Disp.

Angular Disp Max.

Pressur (kg/cm2) Max.

Temp

(mm) (in) (mm) (mm) (mm) (mm) (°) EH-10 EH-10H ℃

25 1 95 8 4 8 15 10 16 60

32 1 1/4 95 8 4 8 15 10 16 40 1 1/2 95 8 5 8 15 10 16 50 2 105 8 6 8 15 10 16 65 2 1/2 115 12 6 10 15 10 16 80 3 130 12 10 10 15 10 16 100 4 150 18 10 12 15 10 16 125 5 170 18 10 12 15 10 16 150 6 180 18 14 12 15 10 16 200 8 190 25 14 22 15 10 16 250 10 230 25 14 22 15 10 16 300 12 245 25 16 22 15 10 16 350 14 265 25 16 22 15 10 16 400 16 265 25 16 22 15 10 16 450 18 265 25 16 22 15 10 16 500 20 265 25 16 22 15 10 16 600 24 265 25 16 22 15 10 16 *Specification stated above are standard.

We can design and manufacture according to customer's requirement.

*Flange standard: JIS, ANSI, DIN, B.S., JB, etc FAQ

Q : Are you trading company or manufacturer?

A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.

Q: Do you have products catalog?

A: Yes, we have.

Please tell me your email or instant messager, we will send our catalog.

Q: Can you provide drawings and technical data?

A: Yes, our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?

A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?

A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK.

Q: How long is your delivery time?

A: Depends on QTY, but normally no more than 20 working days.

Q: Can the products be manufactuered by customer's requirement?

A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Q: Visting company is allowed or not?

A: Yes, we welcome customers visiting our company.

We are located in Hangzhou, Zhejiang Prov., China
