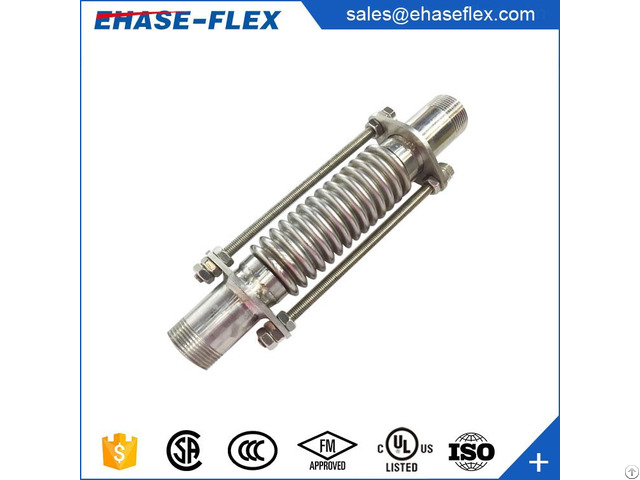

Stainless Steel Pipe Compensator Dn15 Dn65 - China
price: contact company for price
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Ehase-Flex
Model Number: EH-250STGH
Material: Stainless Steel
Technics: Welding
Connection: Male or Female
Shape: Equal
Head Code: Round
Product Name: Stainless Steel Pipe Compensator
Application: Used in deformation joint to compensate the unequal settlement
Size: DN15-DN300
Working Pressure: 10Bar, 16Bar
Movement: Axial
Thread: BSPT OR NPT
Temperature: Max to 1000 ℃
Optional: Add External Cover or Tie rods
Test: 100% Test with 1.5 Times working pressure
Certificate: ISO Supply Ability
Supply Ability: 80000 Piece/Pieces per Year H.
S Code: 7307.29 Packaging & Delivery
Packaging Details
Carton Box, Pallet, or Plywood Case No Unacceptable Packaging Material or Bamboo Products been Used as Packing
Port Shanghai or Ningbo or Any Port in China
Lead Time :
Quantity(Pieces) 1 - 10000 >10000
Est.
Time(day) 25 To be negotiated
Application
Bellows Expansion Joint Used in small size pipeline system to compensate the axial movement.
Bellows Expansion Joint Used in outdoor or bad external environment.
External cover or tie rods are optional.
Construction
ITEM PARTS MATERIAL REMARK 1 Bellows SUS304 SUS316/321
2 Seal Rings SUS304 SUS316/321
3 Tube End SGP SUS304 /316/321
4 Internal Sleeve SUS304 SUS316/321
5 Tie Rods S25C SUS304/316/321 Specification
Nominal Bore Total Length Bellows O.D. Force to Compress Effective Area Axial Movement Rated Working Pressure
mm ins mm mm kg cm2 mm kg/cm2
15 1/2 250 25 34 5.4 +5 -15 16
20 3/4 250 32 34 5.4 +5 -15 16
25 1 250 38 31 8.2 +5 -15 16
32 1 1/4 350 49 135 17.9 +10 -25 16
40 1 1/2 350 62 150 22.4 +10 -25 16
50 2 350 76.2 180 34.2 +10 -40 16
65 2 1/2 350 92 210 53 +10 -40 16
80 3 350 108 250 71 +10 -40 16
*Specifications stated abvoe are the standard.
We can design and manufacture according to customer's requirement
*Threads: NPT, BSPP, BSPT.
Production Process
Production Capacity
Flexible Sprinkler Hoses: 350, 000pcs per Month
Flexible Joints/ Expansion Joints: 80, 000pcs Annual
Gas Connector: 300, 000pcs Per Month Water Connectors: 5, 000, 000m Annual
Q : Are you trading company or manufacturer?
A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.
Q: Do you have products catalog?
A: Yes, we have.
Please tell me your email or instant messager, we will send our catalog.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
Q: Have your products been exported?
A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK.
Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company.
We are located in Hangzhou, Zhejiang Prov., China
Company Contact:
- Posted By: E-hase Flex
- Phone: 86-571-87176348
- Address: Tangqi Industrial Park Yuhang Dis, HangZhou , Zhejiang , China
- Email:
- Website: https://www.ehaseflex.com/
Published date: February 15, 2019
- Business Description: Ehase-Flex is one of the most famous brand in metal flexible joint and expansion joint in Taiwan, with more than 40-year experience in manufacturing flexible joint, expansion joint, flexible sprinkler hose, flexible tube, gas connector, rubber joint.
We founded our factory in China mainland in 2006 - Our company had obtained the quality control system ISO9001.
Our products are FM, UL, CCC, CSA , SGS approved and 100 % tested before delivery.
With high quality our products are widely used in many field such as petroleum, chemical, semiconductor, electronics, machinery, electric power, ship building, nuclear energy, and have got highly recognized among customers both domestic and overseas.
We have customers such as SAMSUNG, BMW, DUPONT, LG, MIXC MALL, Hyatt hotel, Marriott Hotel.
