Type Sq Stainless Steel Helix And Polyester Reinforced Silicone Hose - China

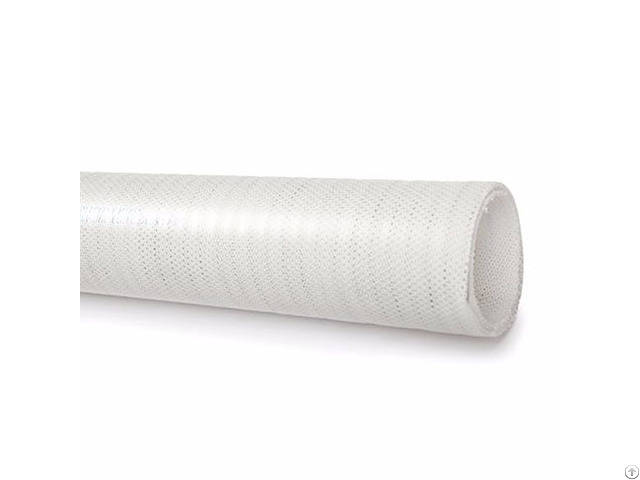

Stainless Steel Helix and Polyester Reinforced Silicone Hose

Construction: Type SQ is manufactured from High purity platinum cured Silicone with single stainless steel helix and 4 layers of polyester reinforcement.

Temp.

Range: -60℃ and 200℃.

(+260℃ on request)

Color of silicone hose: Translucent (Colored covers available)

Smooth inner and outer surface to resist Material adhesion

Suitable for pressure and vacuum.

Suitable for CIP and SIP cleaning

Odourless, Tasteless, Non-Toxic

Certification: FDA, USP, BFR, USDA, ISO 10993

Length: Standard length is 4 or 6 meters.

** PRESSURE DECREASE BY 1% FOR EVERY 1℃ ABOVE 100℃.

Part no.

ID OD Bending radius Work pressure Bursting pressure Vacuum in.

mm mm mm bar bar bar

SQ006 1/4" 6.4 17.5 29 13 39 0.91

SQ008 5/16" 7.9 19 31 12 36 0.91

SQ010 3/8" 9.5 20.5 34 11 33 0.91

SQ013 1/2" 12.7 24 39 10 30 0.91

SQ016 5/8" 15.9 27 45 9 27 0.91

SQ019 3/4" 19 30 54 8.5 25.5 0.91

SQ022 7/8" 22 33 60 8 24 0.91

SQ025 1" 25.4 36 68 7.5 22.5 0.91

SQ032 1-1/4" 32 43 94 6.5 19.5 0.91

SQ038 1-1/2" 38 49 112 5.5 16.5 0.91

SQ045 1-3/4" 45 56 130 5 15 0.91

SQ050 2" 50.8 62 144 4.5 13.5 0.91

SQ063 2-1/2" 63.5 75 181 4 12 0.91

SQ076 3" 76.2 88 232 3 9 0.91

SQ089 3-1/2" 89 102 285 2.5 7.5 0.91

SQ102 4" 102 114 367 2 6 0.91
