Dn 100 Butterfly Valve Wafer Type For Solid Control System - China

price: 35.00 Dollar US$

Dn 100 Butterfly Valve Wafer Type For Solid Control System

Products Photos Catalog 100 Butterfly Valve Photos Catalog

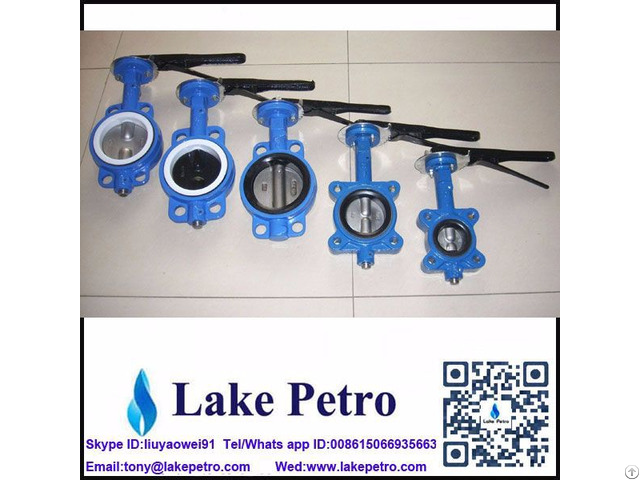

DN 100 Butterfly valve Wafer type for solid control system

Product Description Butterfly valve 1) Standards:

1 Design Standard conform to: MSS SP-67M API609, EN593

2 Connection flange conform to: DIN PN10/16/25 ANSI B16.1, BS4504, ISO PN10/16, JIS B2212/2213, BS 10 Table D, BS10 Table E

3 Top flange conform to: ISO5211

4 Face to face conform to: API609, ISO5752 series 20, BS5155

5 Test standard conform to: API 598 Butterfly valve 2) Design Characters:

1 Rubber backed seat with stable valve torque.

2 Grooved sleeve design to achieve stable pisitioning

3 Simple construction, small in size, light in weight.

Easy disasembling, installation and maintenance.

4 Minimized operating torque.

Lewer, gear, pheumatic and electric actuators can be chosen.

5 Special design, high flow rate and low flow resistance.

6 Suitable madium: water, sewage, sea water, air, steam, foof, medicament, oils, acids, alkais, salts etc.

No leakage under the rated pressure.

Butterfly valve 3) Performance:

Nominal Diameter: Non-backed: DN50-DN300

backed: DN50-DN300, DN350-DN1200

Nominal Pressure PN(mpa): 1.0, 1.6, 2.0, 2.5

Testing pressure (water) Ps(MPa) Body seat: 1.5 times rated pressure

Seat test: 1.1 times rated pressure Butterfly valve

3) Material List

No.

Parts Name 1 Body Cast iron/Ductile iron/ Stainless steel/Carbon steel

2 Disc AI-Bronze/Monel/CF8M/WCB/ Ductile Iron

3 Pin SS316/SS316/SS304

4 Seat EPDM/PTFE/Buna/Hypaton/Vi ton/Neoprene

5 Stem Cr13/SS 416/SS316/Carbon Steel

6 Bushing P.T.F.E./Lubricating

7 O-ring EPDM/Bunal/Hypalon/Viton/ Neoprene

Butterfly valve


Company Contact:


  • Phone: +8615066935663

  • Address: Huanghe road , Huatai centre, Dongying , Shandong , China

  • Email: Email


Published date: November 3, 2017

  • Business Description: Lake Petro company is a professional supplier of various oilfield equipment, including oil drilling and service equipment, oil production equipment, OCTG , wellhead & downhole tools and spare parts with API certification.

    Following the principle of "quality first, science and technology innovated, people oriented", every Lake Petro person is sparing no effort to provide the customers with best products and services.
