Cast Steel Storm Valve Straight Type Jis F3060 5k - China

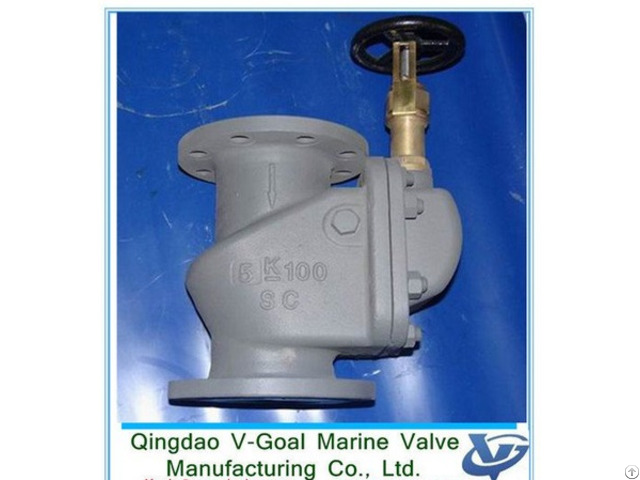

JIS F3060 5K Cast Steel Globe Storm Valve 100A

JIS TYPE FLANGED CAST STEEL SCREW DOWN VERTICAL STORM VALVE

Cast steel storm valve straight type JIS F3060 5K Standard Materials

body sc450

bonnet sc450

stem c4641 bd or be/sus420

gasket nbr

HS Code: 8481300000 DN H D C n-d I

50 210 130 105 4-15 250

65 240 155 130 4-15 250

80 260 180 145 4-19 250

100 280 200 165 8-19 250

125 330 235 200 8-19 250

150 360 265 230 8-19 250

200 450 320 280 8-23 250 We mainly produce the JIS, DIN AND ANSI STANDARD MARINE/INDUSTRY VALVES AND ACCESSORIES MANUFACTURER.

DIFFERENT TYPES OF GLOBE VALVE, GATE VALVE, SDNR VALVE, BALL VALVE, STORM VALVE, STRAINER, BUTTERFLY VALVE, HOSE VALVE, AIR VENT HEAD, CHECK VALVE, FILTER&MUD BOX, FLANGE ETC.

The valves and fittings are with different material of cast iron, cast steel, bronze, brass and aluminum etc.

V-GOAL CONCEPT:

Our culture:

Respect, Caring, Tolerance, Sharing

Our Mission:

Personal achievement, social returns

Our goal:

Manufacturing quality valve, the achievements of a century enterprise

Personal philosophy: sincere dedication to customers.

Specifications

Standard or Nonstandard: Standard

Structure: Globe/Vertic al

Pressure: 0.5Mpa

Nominal Pressure: 5kgf/cm2(0.49Mpa )

Seal pressure: 7.7kg/cm2((0.76M pa)

Intensity preasure: 10.5kg/cm2((1.03 Mpa)

Power: Manual

Material: Cast steel

Temperature of Media: High Temperature

Media: Fresh water, sea water, sewage pipe

Port Size: DN50-DN300

Place of Origin: Qindao, China (Mainland)

Model Number: JIS F3060

Brand Name: V-GOAL

Applicable Scope:

Marine use, The JIS down storm valve are used for controlling the medium to open and close and preventing refluence in seawater and freshwater piping.

The Flange dimensions are according to JIS B2220 standard of steel pipe.

FAQ: Q: Are you trading company or manufacturer?

A: factory, founded in 2011 - Q: How many is your MOQ ?

A: Generally speaking, we don’t have MOQ.

Our price depends on the specific quantity.

(The larger the quantity is, the better price will be.

) Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free charge, but some special item should pay.

Q: What kind of payment does your company support?

A: T/T, L/C, Cash, Western Union etc.

are all accepted.

Q: Do you give any discount?

A: I’ll surely try my best to help you get those by the best price and good service

at the same time.

Q: I haven’t done business with you guys before, how can I trust your company?

A: Our company has been established in 2011 and improved year by year.

What’s more, we’ve got quite a lot authority certificates, for example, ABS, KR, GL, DNV, BV, etc.

Our marine valves would be easily to apply for the certificated.

I hope those above

will be persuasive enough.

Welcome to visit our factory and have a deeper communication.
