Tensioned Pu Screen Panel - China

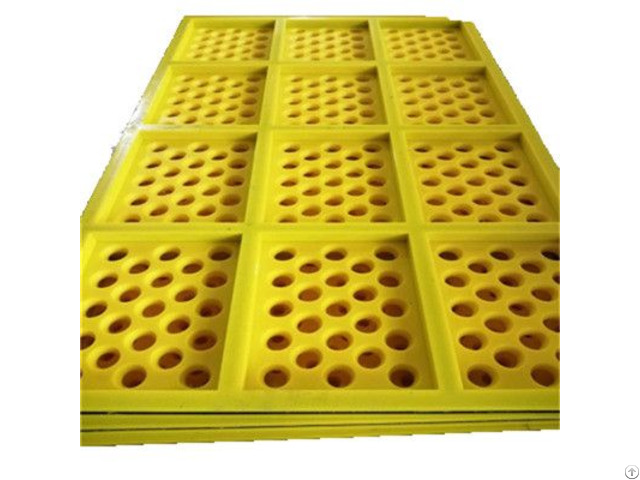

Tensioned PU Screen Panel

Tensioned PU Screen Panel is manufactured from specially formulated polyurethane and high tensile embedded steel frame.

Combined with wear resistance urethane and high tensile strength steel frame, Tensioned PU Screen Panel possesses excellent performance in separating and screening industry.

Similar with modular polyurethane screen also has various connection types, including the bolts connection type, mosaic connection type, press bar connection type and hook connection type.

Various connection types can fit different machines and different applications.

It is the most versatile and cost effective modular system.

Specifications:

Material: polyurethane material and embedded steel frame.

Thickness: 30mm - 60mm.

Aperture type: square, rectangular and round.

Aperture size: 5mm - 50mm.

Connection type: mosaic connection, bolts connection, press bar connection and hook connection.

Features:

Polyurethane materials for wear resistance.

Self-cleaning apertures reducing pegging and blinding.

Wide range apertures suit most applications.

Various panel sizes to suit all vibrating screens.

Different connection type for easy installation and replacement.

High screening performance.

Low noise.

Long service life and durable.

Applications:

The Tensioned PU Screen Panel can fit various vibrating screens and widely used in various applications.

Steel plants.

Mining industry.

Cement plants.

Mineral beneficiation industry.

Power plants.

Coal washing.

Sand, gravel separating and screening.
