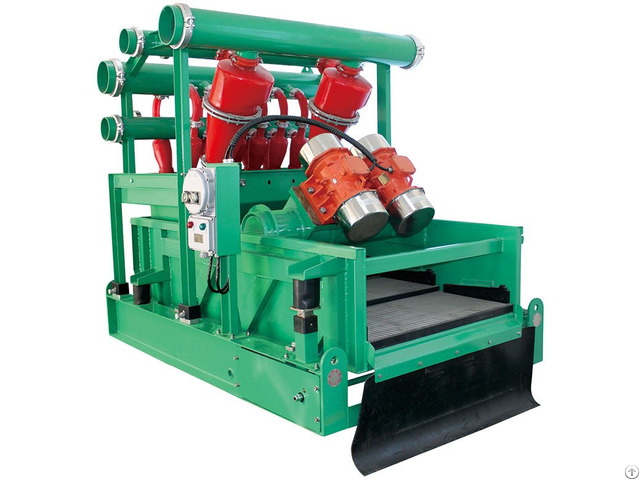

Solid Control Fluid Mud Cleaner - China
price: 5000.00 Dollar US$
A mud cleaner is a combination of desanders and/or desilters mounted over a shaker with a fine mesh screen.
A mud is fed to the inlet of the hydrocyclone (desander and/or desilter) to separate particles and the underflow passes to the fine screen mesh where in particles larger than barite are discarded and thrown away.
In most drilling operations, a mud cleaner is installed in its mud systems.
It is usually located in a mud tank in the same location as with the desilters.
The weighted mud flows to the inlet head section of the desander and/or desilter entering the hydrocyclones for separation of particles.
Mud leaving the underflow is further screened with fine mesh to separate larger particles allowing only barite size particles to pass through the screen returning and recovering then the clean mud.
The purpose of the mud cleaner is to remove drilled solids larger than barite.
Solids larger than 74-105 micrometres can be removed by the mud cleaner before the viscosity builds up.
Mud cleaner can effectively control weighted drilling fluid solid content.
Prevent differential pressure sticking, adhesion stuck drill accident, reduce the drill string and the filter cake thichness on bond issues.
Company Contact:
- Posted By: Dongying Lake Petroleum Technology Co., Ltd
- Phone: +865467080021
- Address: Huanghe Road, Dongying , Shandong , China
- Email:
- Website: https://www.lakepetro.com
Published date: October 12, 2019
- Business Description: We are a supplier from China for Oilfield equipment and tools: BOP, Mud pump, Valves, pipes, Handling tools, Downhole tools, Solid control, Wellhead control, flanges, fittings and spare parts.
