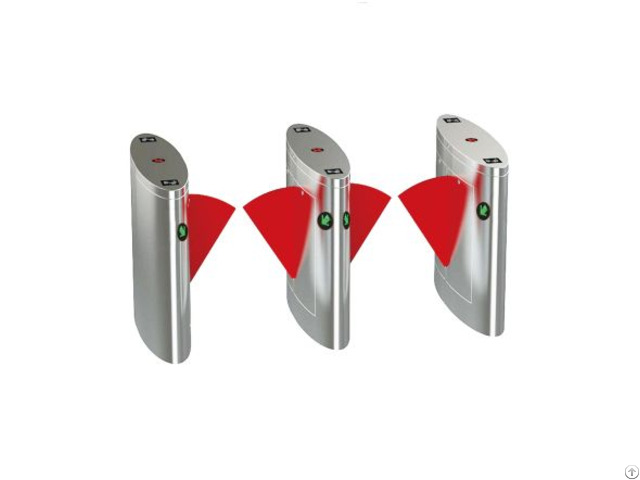

Card Or Coin Operated Access Control System Flap Turnstile Gate - China

Card or coin operated access control system Flap turnstile gate

Material of housing 304 Stainless steel

Dimension of Housing 1200*300*980 mm

Length of Pole(out of housing) 490mm

Net Weight 50KG

Max load-bearing of pole 80kg

Driving Force of Pole 3kg

Power Supply AC220V±10%, 50HZ;AC110V±10%, 60HZ

Working Voltage of motor DC12V

Rated Power 50W 36W

Mechanism Motomatic mechanism Automatic mechanism

Input Interface DC 12V electrical level signal, more than 1oms, or DC 12V impulse signal driving current.

more than 10ms Dry contact with the pulse between 200ms and 500ms

Transit speed 25-32 persons/min

Working Temperature -25℃C~+55°C

Working environment Indoor/ Outdoor

Relative humidity <95%, no condensation

Functions& Features of turnstile gate with card reader

1).

Card reader available, support WEIGNAD 26/34 communication card reader

2).

Bi-directional pass/any single direction pass(adjustable)

3).

Arm auto-drop when power off and auto rise up when power on and auto stop on obstacle

4).

Traffic light indicator/ Pass direction indication

5).

Alarm light available(optional function)/Remote control available (optional function)/ Counter available (optional function)

6).

RS232 socket available which can connect to computer.

It can also connect to computer by Internet LAN socket (Optional function)

Performance and Features: 1 - Fault detection and alarm functions, easy to use and maintenance.

2 - The running status can be programmed and controlled with the built-in keyboard on the main board.

3 - Mechanical antipinch function.

If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)

4 - Anti-breakthrough function.

The gate is locked automatically until opening signal received.

5 - Synchronization functions (for dual gate equipment).

6 - Automatic reset function.

Should the user fail to pass within the prescribed time, the system will cancel the authority of the current user automatically.

7 - Gate can be set as normally open or normally closed.

8 - Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.

9 - Direction can be set as single-direction or bi-direction.

10 - LED direction indicator.

11 - Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12 - Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13 - Counter function (optional).

14 - Support infrared photocell for anti-pinch and reset function.

Communication:

Dry contat relay with 12V OR 24V pulse.

TCP/IP communication with computer.
