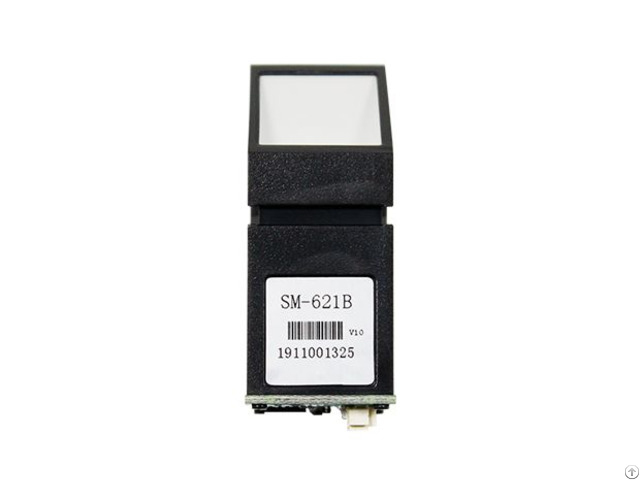

Miaxis Model SM-621B V10 Fingerprint Authentication Modules

Biometric OEM Module OVERVIEW:

Miaxis Model SM-621B V10 is a highly cost-effective integrated optical fingerprint module equipped with powerful CPU and high quality optical sensor with advanced CMOS technology.

The module allows standalone operation with on-board fingerprint image processing, template extraction, fingerprint matching (including 1: 1 and 1: N), template storage and other functions.

Optical Fingerprint Sensor FEATURES:

• 500 dpi resolution

• Large image capture area

• Durable optical sensor surface

• Miaxis proprietary fingerprint algorithm

• Flexible security setting

fingerprint authentication modules SPECIFICATION:

Specification SM-621B V10

CPU 200MHz, Cortex-M4F

Flash memory 256KB (Expandable up to 1MB)

Product size(L x W x H) 55.0×22.0×24.5mm

Sensor type Optical

Active platen area 12.8*15.2mm

Image Size 256*304 pixel

Image resolution 500 dpi

Grey scale 4 bit

Power-on time ≤200ms

Enrollment time

(Finger touch to template) ≤350ms

1: 1 Verification time* ≤150ms

1: N Matching time ≤1s, N=128

FAR ≤0 - 001 %

FRR ≤1 %

Template size 256 bytes default

Fingerprint capacity 256 templates (Expandable)

ESD immunity ±8kV contact discharge

±15kV air discharge

Supply voltage DC 3.8V-7.0V

Supply current ≤80mA

Supply current Sleep mode ≤10uA

Communication interface UART

Baud rate 57600(default), 5 options

Operating Temperature -10°C to +50°C

Storage Temperature -20°C to +60°C

Operating humidity 20%RH～90%RH

Note: the 1: 1 verification time* is calculated based the time of input template matched to the stored template.
