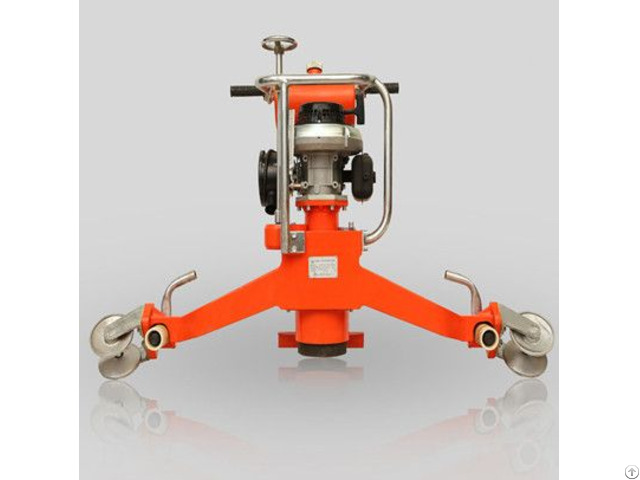

Petrol Engine Railway Head Profile Grinder - China
price: contact company for price
NGM-6.0 Rail Profile Grinder
This machine is powered by the M165 two-stroke petrol engine imported from Spain.
It is a small machine used for forming and grinding the rail head welding joints and surface repairs.
It is suitable for rails of 43~75kg/m.
The special diaphragm carburetor make sure the engine does not stall after turning 90°, and the output torque is stable without power attenuation, thus ensuring the precision of rail grinding.
Specification
Model
NGM-6.0
Type
Rail Profile Grinder
Material
Stainless Steel
Dimensions (L x W x H) (mm)
1410*500*850mm
Engine
2 stroke petrol engine M165
Power
6.0kW
Grinding stone speed
≥3900r/min
Grinding stone inclination
0~90°
Grinding stone feeding stroke
42mm
Grinding stone specification
φ150xφ55x70mm
Fuel tank volume
4.5L
Profile wheel span
1000mm
Feed adjustment accuracy
0.125mm
Weight
60kg
Company Contact:
- Posted By: Wuhan Linkage Track Equipment Co.,Ltd
- Phone: 15925241229
- Address: 1007, Block B, Building 1, Modern Service Base, Huagong Science Park, Daxueyuan Road, Donghu New Tec, wuhan , Hubei , China
- Email:
- Website: http://linkagetrack.com/
Published date: May 14, 2024
- Business Description: Wuhan Linkage Track Equipment Co,Ltd is a professional manufacture of an extensive range of equipment for the railway industry.
Linkage Group strive to provide One-Stop service for global railway maintenance.
Our company has expanded its operation to three branch office , location facilitates in Xiangyang ,Wuhan and Guangzhou,China.
We export to over 60 countries,like Alstom ,Hitachi Rail,Colas Rail ,ETF, CCR METRO,BHP ,VALE,and EFE etc.
