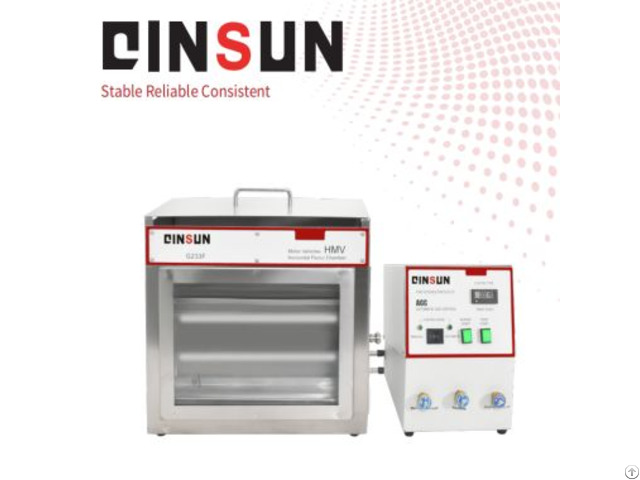

Fabric Horizontal Burning Test Machine - China

Standard

QB/T 2729: Leather – Horizontal flammability test for physical and mechanical properties.

ASTM D5132: Horizontal burning rate of polymeric materials in vehicle occupant compartments.

SAE J369: Polymeric interior material flammability – Horizontal test method.

FMVSS 302: Flame retardancy of automotive interior materials (cars, trucks, buses).

ISO 3795: Burning behavior of interior materials in road vehicles and agricultural machinery.

DIN 75200: Combustion performance of automotive internal equipment materials.

ISO/NP 17074: Leather – Determination of horizontal flame spread resistance.

Product Advantages

Precision & Repeatability: Delivers highly repeatable experimental data to evaluate material flame-retardant performance accurately.

Broad Applicability: Tests leather, polymers, textiles, and automotive interior parts (e.g., seats, roof linings, curtains).

Safety-First Design: Electrical control and combustion chamber are separated to prevent fire hazards, ensuring stable operation.

Automated Data Capture: Precisely records ignition time and flame spread duration for objective analysis.

Compliance Assurance: Meets stringent automotive and textile industry standards, simplifying export certifications.

Research & Development Support: Provides critical data for new material development and quality control.

Product Features

Dual-Chamber Structure: Isolated electrical control unit and combustion chamber enhance safety and operational stability.

Multi-Material Testing: Suitable for automotive interiors, public transport components, and industrial textiles.

Adjustable Ignition System: Angled burner (0° or 45°) with precise燃气pressure control (0-50kPa).

High-Precision Measurement: Accurately tracks flame spread distance and time (resolution: 0.1s).

User-Friendly Interface: Digital display for real-time monitoring and data storage.

Compliance-Driven: Aligns with ASTM, ISO, SAE, and DIN standards for global market access.

Technical Parameters

Parameter Specification

Ventilation Slot Height 13 mm

Vent Hole (Bottom) Diameter φ19 mm × Depth 10 mm

Observation Window Width 330 mm

Sample Rack Dimensions 255 mm × 200 mm × 170 mm (L×W×H)

Sample Fixture U-Type, 355 × 25 × 10 mm (Inside Margin: 50 mm)

Flame Box Dimensions 368 mm × 216 mm × 356 mm (L×W×H)

Burn Timer Accuracy: ±0.1 s

Standard Flame Height 38 mm

Collection Plate 55 mm × 119 mm × 19 mm

Ignition Time 15 s (Adjustable)

Overall Dimensions 390 mm × 200 mm × 390 mm (L×W×H)

Support Wire φ0.25 mm (High-Temperature Resistant Wire)

Spading 25 mm

Weight 31 kg

Power Supply AC 220V ±10%, 50Hz Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China, Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience, Based on international testing standards, We are also the instrument supplier for BV SGS laboratory, We provide one-stop solutions for lab instruments, Free Training and Turn-Key Service, Products exported all over the world, Offer 36 month warranty and are a trustworthy partner.
