Yarn Twist Testing Machine - China

Standards

ASTM D1422/1423 - BS 2085 - DIN 53832 - ISO 2061 - IWTO 25-70 - GB/T 2543.1-2001/2543.2-2001 Application

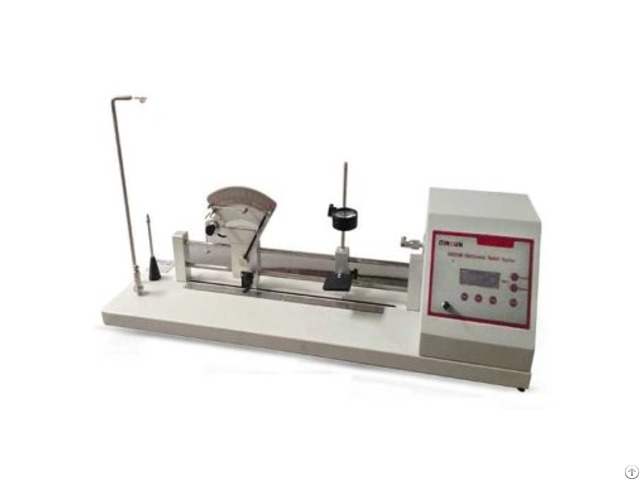

Twist Tester, is used to get the coefficient of twist, which is a measurement of the level of twist of the yarn, suitable for testing single or plied yarns, equipped with auto stop & reverse for conventional or untwist/re-twist methods, makes yarn twist testing an easy task for textile testing labs or factories.

Twist tester offers adjustable test length up to 500mm/20 inches for S & Z twist yarns, and inching function helps the operator to get an esteemed twist quickly.

Test result in TPI / TPM is directly displayed on the touch screen.

Information

The electric yarn twist tester can be used to determine yarn twist in single yarn or ply yarns, it is a kind of quadrant type tester with auto stop & reverse for conventional or untwist/re-twist methods.

Test length adjustable up to 50cm/20 inches for S & Z twist yarns.

The weight of electronic Twist Tester: 16kg(36lb) Outside dimensions of electronic Twist Tester: 1070×300×290mm(L×W×H) Parameter

Length of sample 0-500mm(adjustable) Range of twist testing 1-9999.9twist/10cm, 1-9999.9twist/m Max length of untwisting 100mm (Showed by indicator) Max contracting of twisting 10mm Grip speed 800r/min and 1500r/min Presetting tension 0.5-160.5cN Dimensions 900 x 250 x 300mm ( L x W x H ) Weight 20kg
