4g Lte Wall Mount Indoor Booster Panel Antenna - China

price: 10.00 Dollar US$

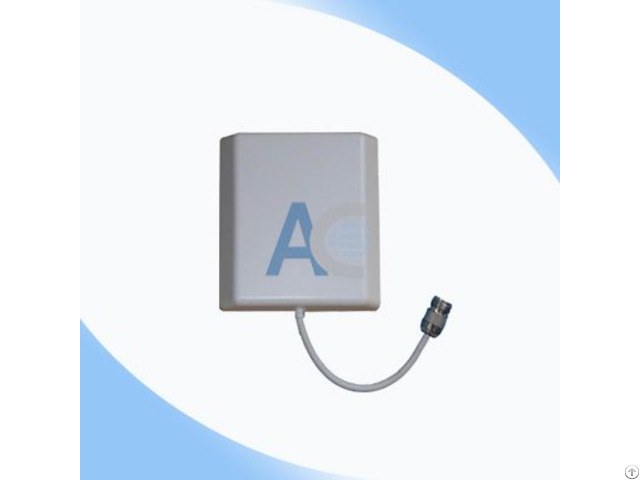

4g Lte Wall Mount Indoor Booster Panel Antenna

Products Photos Catalog Lte Wall Mount Indoor Photos Catalog

Electrical Frequency Range 698-960/1710-2700MHz Band width 262/990MHz

F/B Ratio ＞20dB

Gain 5/7dBi

V.S.W.

R ≤2.0

Radiation Direction

Horizontal Beam width 68°

Vertical Beam width 58°

Polarization Vertical

Lightning Protection DC-Grounded

Maximum Input Power 50W

Impedance 50Ώ

Connector N Female

Cable Type RG58U

Cable Length 30cm

Antenna Radome Material ABS

Mount way Wall Mount Or Pole Mount

Diameter of Installation Pole Ø30-Ø50mm

Mechanical Dimensions 207×180×45mm Weight 0.5KG

Rated wind velocity(m/s) 60

Operating Temperature -40℃ to+70℃

RoHS Compliant YES


Company Contact:


  • Phone: +86-757-87668779

  • Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China

  • Email: Email


Published date: May 26, 2017

  • Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
