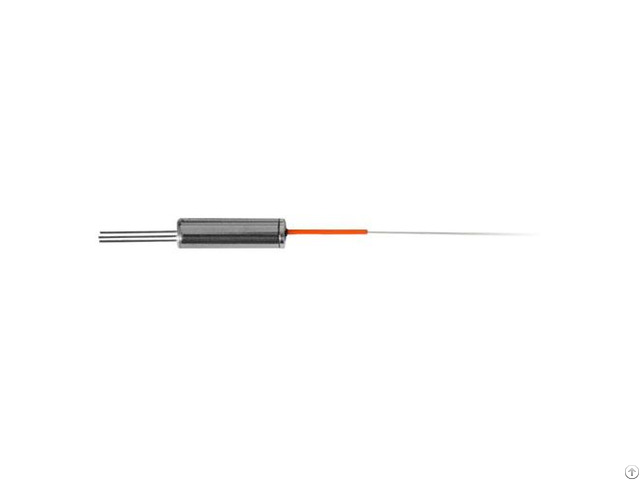

Mems Voa Optical Switch - China
price: 100.00 Dollar US$
MEMS VOA is a precise and adjustable voltage-driven optical component.
The key part of the
component is MEMS chip; driving voltage produces electrostatic force to drive the micro-mirror
on the chip, then to adjust output optical power.
It has excellent features such as compact
dimension, low power consumption, fast responding, anti-shock, low WDL as well as low PDL.
It
is successfully applied in military project.
It meets reliability standard of Telcordia 1221 - MEMS
VOA has 2 series: fast responding series and low voltage driving (LOWO) series.
Each series
has variable models like single wavelength, dual wavelength, and polarization-maintaining.
We could also develop and produce other MEMS VOA as customers’ requirement.
Attenuation Range
FASRE-1 20dB
FASRE-2 30dB
FASRE-3 40dB
Response Time 1ms; 1ms; 1ms
Attenuation Resolution
Continue
Continue
Continue
Insertion Loss <0.8dB <0.8dB <0.8dB
PDL <0.2dB <0.2dB <0.2dB
WDL <1.0dB <1.0dB <1.0dB
Return loss ≥50dB ≥50dB ≥50dB
Operation Wavelength S/C/L S/C/L S/C/L
Driving Power <10µW <10µW <10µW
Driving Voltage 12V 14V 15V
Max Optical Power: 500mW
Package Size: 5.5mm×19mm
Durability >10E+9 Cycle
Note ull range
Typical value 0.6, without connector 15dB
avelength near 1310, 1060, 850 is optional
Maximum voltage for full range
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: August 30, 2016
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
