Single Stage 1x2 Magneto Optical Switch - China

price: 100.00 Dollar US$

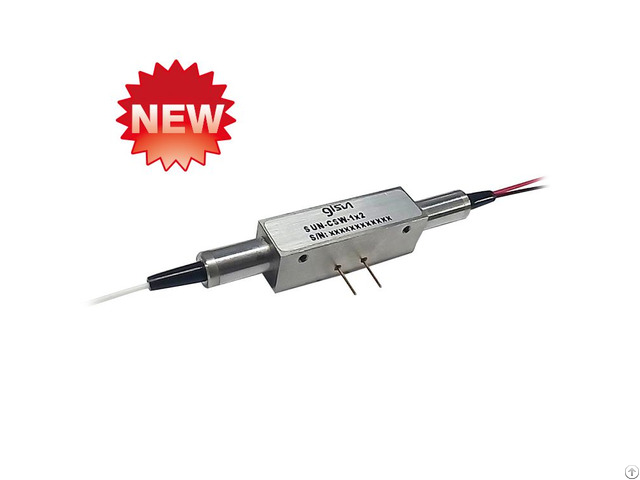

Single Stage 1x2 Magneto Optical Switch

Products Photos Catalog Stage 1x2 Magneto Photos Catalog

Single-stage 1x2 Magneto Optical Switch - Features

High switching speed

Better durability

High reliability

Low voltage drive

Fail-safe latching

Single-stage 1x2 Magneto Optical Switch - Applications

Optical channel blocking

Configurable Add/Drop

System monitoring, Test&measurement

Fiber-optics sensing system

Single stage 1x2 Magneto Optical Switch - Specifications

1x2

Wavelength Range: 1520~1580nm

Test Wavelength: 1550nm

Insertion Loss 1, 2: 1.0dB

Return Loss≥50dB

Crosstalk≥20dB

PDL≤0.2dB

Repeatability≤±0.01dB

Operating Voltage: 2.5V

Durability ≥ 30 Bllions Cycles

Switching Time ≤100 μs

Switching Type: Latching n/a

Optical Power≤500mW

Operating Temperature: -5~ +70℃

Storage Temperature: -40 ~ +85℃

Relative Humidity: 5 ~ 95%

Fiber Type: G657A1

Dimension: (L )29x(W)7.3x(H)6

Note:

1 Within operating temperature and SOP.

2 Excluding connectors.


Company Contact:


  • Phone: 18607731315

  • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China

  • Email: Email


Published date: August 30, 2016

  • Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
