Rgby 5050 Led Chip - China

price: check with company for price

Rgby 5050 Led Chip

Products Photos Catalog Rgby 5050 Led Chip Photos Catalog

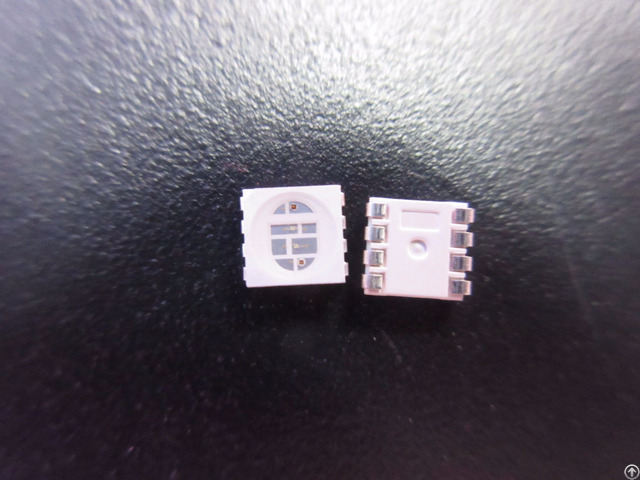

5050 RGBY LED CHIP

RGBY LED provides the leading Chip on Top SMD type of LED technology for high efficiency solid-state

lighting solutions.

It offers excellent uniformity, flexibility and cost efficiency along with compact size and wide range

of color selections.

All components are produced by packing high-performance LED chips and silicon resin with proprietary phosphors.

Dimensions and Materials: .

Dimensions: 5.5 mm x 5 mm x 1.6 mm

.

Packages: Top SMD

.

Capsulated Resin: Silicone Resin with Silicate Phosphor

.

Electrodes: Ag Plating

.

Chips: Total 4 chips packed in cavity Features and Benefits: .

Ideal for LED lighting application to avoid multi-shadows

.

Higher heat conductivity for better thermal management

.

Provide variable and innovative array LED layout designs and combinations

.

Reduce the initial development cost and time

.

High lumen-performance per dollar cost

.

Lead free reflow solder compatible with RoHS compliant Applications: .

Solid State Lighting

.

Indoor/Outdoor/Decoration

.

Signal Light Engine

.

Commercial Display

.

Industrial Light Engine


Company Contact:


  • Phone: +86 13670216169

  • Address: 5F, Da Dongming Science and Technology Park, Yuequn Road,Gongming Town,Guangming New District,Shenzh, SHENZHEN , China

  • Email: Email

Published date: December 29, 2019

  • Business Description: Shenzhen LED Color Opto Electronic Co., Ltd.was established in 2012, we are a LED company integrating R&D, production, sales and service.

    Mainly engaged in the production of high-quality addressable LED chips and flexible LED lighting strips
