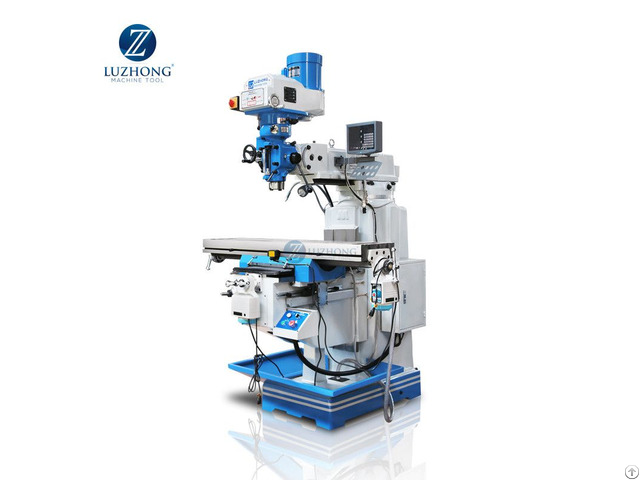

4hw 5hw Universal Radial Knee Type Turret Milling Machine - China

The main performance characteristics： 1 - M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.

2 - Spindle adopts imported from Japan King combination diamond.

After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.

3 - Three shaft screw fine grinding with advanced phosphor bronze nut, durable.

4 - Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.

5 - Many parts of the machine tools have been applied for patent

Application：

The milling machine is a kind of universal light duty metal cutting machine, Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline, etc.

Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

Product main technical parameters:

Specification s Units 4HW 5HW

Table size mm 1270x254 1370x305

Table travel mm 780/420/400 810/420/400

T slot(number-width-pitch) mm 3-16-65 3-16-65

Spindle taper (V) R8/ISO40

(H) ISO40 (V) R8/ISO40

(H) ISO40

Spindle speed range rpm (V)50HZ: 65-4500 60HZ: 80-5440, 16 steps;

(H)45-1350, 12 steps (V)50HZ: 65-4500 60HZ: 80-5440, 16 steps;

(H)45-1350, 12 steps Optional: variable 65-4000 Optional: variable 65-4000

Spindle travel mm 127 127

Spindle feed range mm 0.04, 0.08, 0.15

(3 steps) 0.04, 0.08, 0.15

(3 steps)

Distance between spindle axis and table surface mm 0-400 0-400

Main motor power kw 2.2(V)3(H) 2.2(V)3(H)

Head rotation (left - right ) ° ±90° ±90°

Head rotation (front - rear) ° ±45° ±45°

Weight kg 1750 1850

Overall dimension mm 1550x1650x2250 1550x1650x2250

-------------
