Z3040x14 Iii High Quality Radial Drilling Machine - China

price: 7460.00 Dollar US$

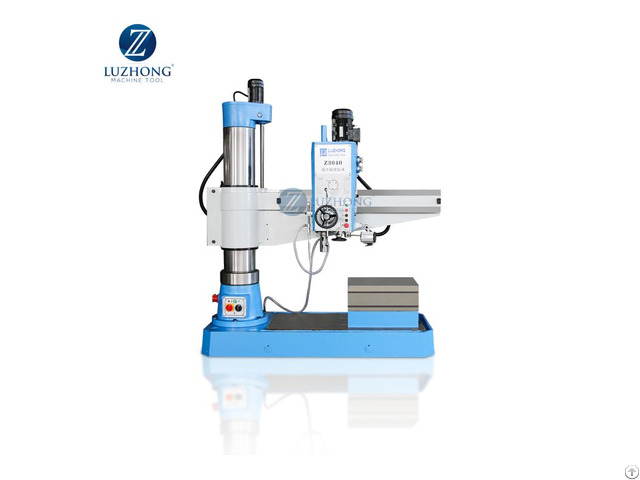

Z3040x14 Iii High Quality Radial Drilling Machine

Products Photos Catalog Z3040x14 Iii Radial Photos Catalog

Product Model：

Z3040X14/III Radial Drilling Machine

Product picture： The main performance characteristics： Hydraulic clamping

Hydraulic transmission

Hydraulic pre-selection

Electrical machinery double insurance

Product main technical parameters:

SPECIFICATION S Z3040X14/III

Max.

drilling dia(mm) 40

Distance from spindle axis to column surface (mm) 350-1370

Headstock travel (mm) 1015

Distance from spindle nose to table surface (mm) 260-1210

Spindle taper(MT) 4

Spindle speed steps 16

Spindle speeds range(r.p.m) 32-2500

spindle travel (mm) 270

Spindle feeding steps 8

Spindle feeding range(mm/r) 0.10-1.25

Rocker vertical moving speed(mm/min) 1.27

Rocker rotary angle ±90°

Maximum resistance to the spindle(N) 12250

Main motor power(kw) 2.2

Movements motor power (kw) 0.75

N.

W/G.

W(Kg) 2200

Dimension machine(L×W×H) (mm) 2053 x820x2483


Company Contact:


  • Phone: 86-0632-5083086

  • Address: East of Luban Avenue,Tengzhou City,Zaozhuang City,Shandong Province,China, Tengzhou Shandong Province China, In the business, China

  • Email: Email


Published date: May 8, 2021 - Modified date: May 8, 2021

  • Business Description: -Machine center

    -Lathe machine

    -CNC lathe machine

    -Milling machine

    -Drilling machine

    -Band sawing machine

    -Boring machine

    -Hydrulic press machine

    -Metal forging machine(Air hammer,Slotting machine,Shapping and Gear hobbing machine)

    -Sheet metal machine(Bending machine,Shearing machine,Rolling machine,Combined punching and shearing machine,Combination of Shear Brake Roll Machine)

    Whatsapp/wechat: +86 15163203317
