Rail Heads And Frogs Grinder Frog Switch Grinding Machine - China
price: 3500.00 Dollar US$

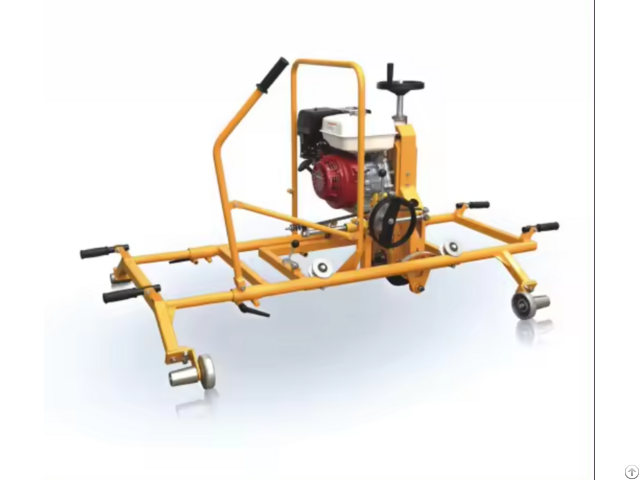

Rail frog and switch grinding machine
NCM-5.1 frog and switch grinder is specifically designed for grinding operations through switch and crossings and either side of the rail head.
The grinding device of the machine can be tilted by 30° from the vertical direction to the left and right, and the position of the grinding wheel can be adjusted along the vertical and horizontal directions So that the grinding device of the machine can work very accurately in the narrow space between the rails.
The machine adopts the pull rod transverse feed mode, which is easy for the operator to grasp the feed force and improve the grinding quality and efficiency.
It has the characteristics of precise turning and positioning at any position and angle of the turmout rail head.
Model NCM-5.1
Engine
Honda GX270 Petrol engine
Power supply
5.1kw
Spindle revolution
≥3900r/min
Grinding stone inclination
≥30°
Grinding stone feeding stroke
≥80mm
Grinding stone feeding accuracy
1mm
Weight
117KG
Company Contact:
- Posted By: Wuhan linkage track equipment co
- Phone: +8615671313697
- Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, Wuhan , Hubei , China
- Email:
- Website: https://www.linkrailtech.com/
Published date: December 23, 2024
