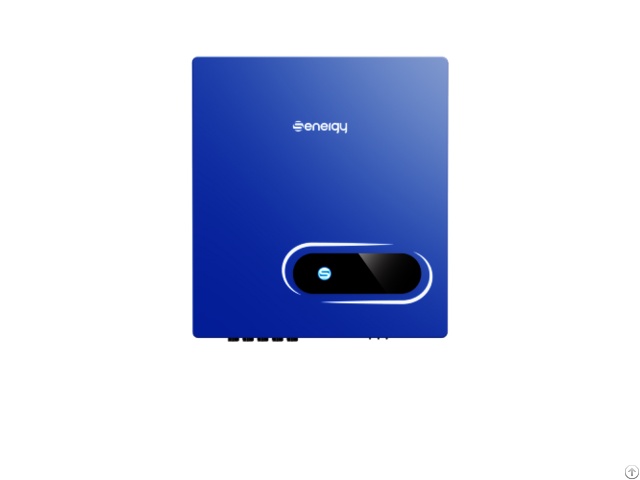

Se 25 28 30ktl D3 - China

Features Maximum efficiency 98.6%

String current 13.5A, compatible with high Power modules

150% PV configuration, 110% output overload

Integarted type Ⅱ DC/AC SPD

APP for local settings & display

Remote configuration and upgrade

More information please visit our website

Model SE 25KTL-D3 SE 28KTL-D3 SE 30KTL-D3

Efficiency

Max.

Efficiency 98.6% 98.6% 98.6%

European Efficiency 98.3% 98.3% 98.3%

Input(PV)

Max.

Input Voltage 1000V

Max.

PV configuration 150%

Rated Input Voltage 620V

Max.

Input Current 81A(2*40.5A)

Max.

Short Circuit Current 90A(2*45A)

Start Input Voltage 250V

MPPT Operating Voltage Range 180V-960V

Max.

Number of PV Strings 6(3/3)

No.

of MPPTs 2

Output(Grid)

Rated AC Active Power 25, 000W 28, 000W 30, 000W

Max.

AC Apparent Power 27, 500VA 30, 800VA 33, 000VA

Max.

AC Active Power (PF=1) 27, 500VA 30, 800W 33, 000W

Max.

AC Output Current 3*40A 3*45A 3*48A

Rated AC Voltage 380V/400V, 3W+N+PE

AC Voltage Range① 277V-520V(adjustable)

Rated Grid Frequency 50Hz/60Hz THDI <3%(Rated Power)

DC Current Injection <0.5%In

Power Factor > 0.99 Rated power (Adjustable 0.8 LG – 0.8 LD)

Protection

DC switch Support

Anti-islanding protection Support

AC overcurrent protection Support

AC short circuit protection Support

DC reverse connection Support

Surge Arrester DC Type Ⅱ, AC Type Ⅱ

Insulation detection Support

Leakage current protection Support

General

Topology Transformerless

IP Rating IP65

Night Self Consumption <1W

Cooling Fan cooling

Operating Temperature Range -25℃-60℃

Relative Humidity Range 0-100%

Max.

Operating Altitude 4000m

Noise <50dB

Dimensions (W*H*D) 555mm*446mm*270mm

Weight 41Kg

HMI & COM

Display Wireless & APP +LED, LCD(Optional)

Communication RS485, WiFi /GPRS/4G/LAN(Optional)


Certification

Safety IEC62109-1, IEC62109-2

EMC EN 61000-6-2/4

Grid Code IEC61727/62116

Warranty 5 Years

Supports export power control
