Toffon Freeze Dryer Tf Fzg 100 - China

Product Overview

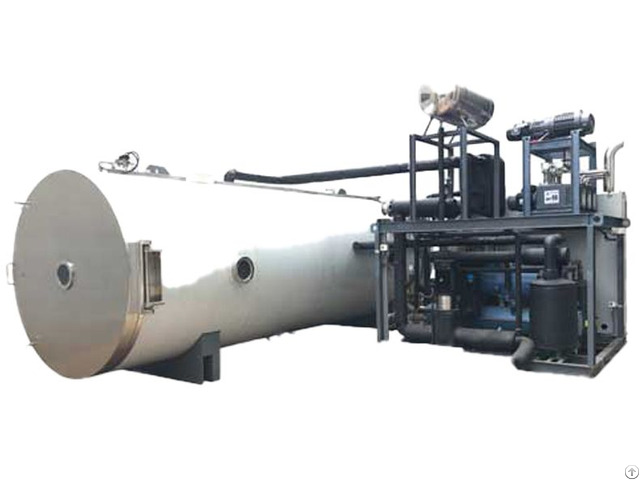

The FZG series freeze dryer is manufactured via standardized production processes, addressing the processing and production needs of diverse foods, traditional Chinese herbs, and industrial raw materials.

It utilizes high-quality materials and integrates widely recognized imported components in the industry.

Furthermore, it applies advanced manufacturing techniques to ensure the equipment fully complies with GMP standards.

Equipment Features

The freeze-drying chamber and partitions strictly adhere to GMP requirements.

The cylinder is constructed from 304 stainless steel with a mirror-polished interior, exceeding the manufacturing processes and standards of conventional food freeze dryer manufacturers in China.

It features an integrated design of the freeze-drying chamber and cold trap, with a front-chamber-rear-trap layout.

An illuminated observation window is provided to facilitate visual inspection of the chamber’s interior.

This design ensures easy cleaning and eliminates sanitary dead corners.

Partitions are custom-manufactured based on customer needs.

The 304 stainless steel partitions are processed with surface-drawn square steel profiles, offering a smooth surface that is easy to clean and maintain optimal hygiene.

The water-catching coil in the cold trap is made of clean stainless steel.

Customers can select between integral or separate structures according to their requirements.

Components of the refrigeration system are equipped with high-standard imported brands, delivering strong cooling capacity, rapid cooling speed, and stable, reliable performance.

The vacuum system provides various vacuum pump combinations to meet customer demands, utilizing high-quality vacuum pumps from AiFa Technology.

It employs an imported Omron PLC control system for convenient data storage and operation.

The control system supports both automatic and manual modes, allowing flexible switching.

Multiple sets of process settings can be configured, and formula modifications are feasible during the drying process, enabling arbitrary step adjustments.

It adopts immersion or steam defrosting, ensuring fast and thorough defrosting and cleaning.

It includes a pre-freezing function, eliminating the need for external pre-freezing storage and reducing risks of material liquefaction and contamination.

It offers process adjustment capabilities, featuring curve-controlled temperature and temperature-vacuum control adjustment functions to meet diverse material processing requirements.

The intermediate oil in the partitions conducts heat without requiring steam, ensuring compliance with environmental protection and safety standards.
