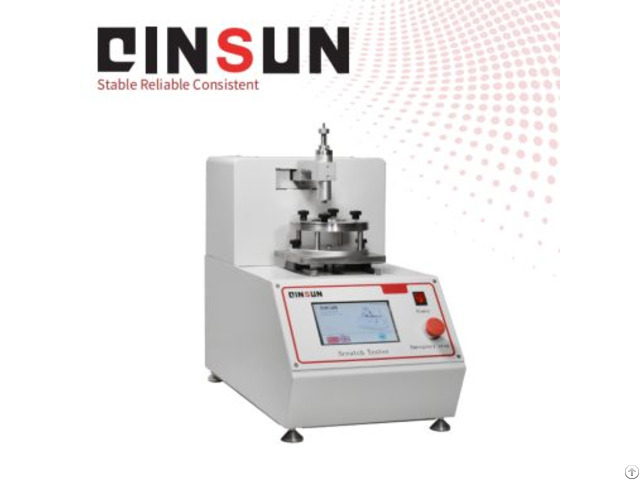

Automatic Cross Hatch Tester Qinsun - China

Standards

Automotive Standards: PV 3952 - Ford BN 108-03 - BMW 0180 - DAF KEUR 00824-401 - GME 60401 - GM 14829 - Jaguar-Landrover TPJLR.

52.00 - GM N 14688 General Standards: 8350Z-SDA-9000 - NES M M0159 Product Advantages

Unmatched Precision & Reliability High-precision stepper motor and rail transmission system minimize operational noise while ensuring uniform movement and long-term durability.

Rail-guided positioning guarantees ±0.01mm accuracy, critical for repeatable cross-cut adhesion tests.

Versatile Customization Interchangeable Weight System: Adjustable load range (5–50N) accommodates varied testing protocols, with customizable pressurization options.

Modular Fixture Design: Spin-type sample clamping ensures secure fixation without slippage; replaceable fixtures adapt to friction head dimensions for diverse test areas.

Intuitive Operability " LCD touchscreen supports English/Chinese interfaces, enabling effortless parameter setup (stroke, speed, grid count) and real-time data monitoring.

Pre-programmed test suites align with major international standards, reducing setup complexity.

Industrial-Grade Durability Robust construction withstands high-frequency laboratory use, maintaining calibration stability over 10.000+ test cycles.

Product Features

Advanced Control System: LCD interface displays test progress, grid spacing (1mm/2mm options), and cutting speed (10–100mm/s adjustable).

Multi-language support enhances global usability.

Precision Engineering: Horizontal/vertical rail transmission eliminates backlash, ensuring flawless cross-hatch pattern execution.

Quick-release friction heads simplify transitions between test configurations.

Adaptive Testing Capabilities: Flexible fixtures integrate with imported scratch heads, enabling compliance with automotive, aerospace, and consumer goods standards.

Adjustable scratch spacing (0–2mm) caters to materials with varying surface textures.

Ergonomic Design: Compact footprint (400x350x300mm) saves lab space while accommodating samples up to 200x150mm.

Tool-free sample mounting reduces setup time by 40% compared to traditional clamps.

Technical Parameters

Specification Details

Load Range 5N, 10N, 20N, 50N (customizable up to 100N)

Cutting Speed 10–100 mm/s (adjustable in 1mm increments)

Grid Spacing 1mm, 2mm (0–2mm adjustable)

Sample Size Max.

200mm (W) x 150mm (D)

Power Supply 220V/50Hz, 110V/60Hz (CE-certified)

Dimensions 400 (L) x 350 (W) x 300 (H) mm

Weight 25 kg (net)

Operating Environment 15–35°C, ≤85% RH (non-condensing) Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China, Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience, Based on international testing standards, We are also the instrument supplier for BV SGS laboratory, We provide one-stop solutions for lab instruments, Free Training and Turn-Key Service, Products exported all over the world, Offer 36 month warranty and are a trustworthy partner.
