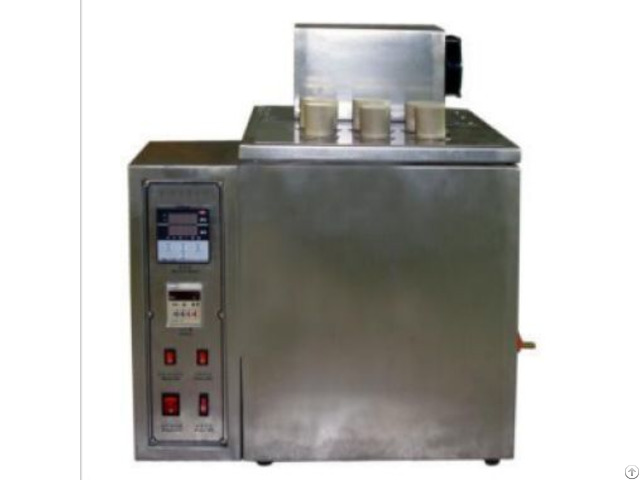

Car Wire Heat Resistant Salt Water Testing Machine Qinsun - China

A compact solution for evaluating wire insulation durability in harsh aqueous environments.

Features precision temperature control (0–100°C), adjustable saltwater concentration (0–5%), and auto-data logging.

Standards ISO 6722-1, SAE J1128: Global standards for electrical cable resistance to fluids and thermal aging.

QC/T 730, JASO D611: Chinese and Japanese automotive industry benchmarks for saltwater/chemical resistance.

EN 50305, EN 50395: European norms for railway and automotive wiring durability in harsh environments.

Equivalent Standards: LV 124 (automotive OEM specification), ASTM D1694 (environmental testing).

Main parameters: 1 - Power supply: 380V 50Hz 2, heating power: 6000W(salt water resistance type) 3, digital display temperature control: room temperature ——99.9℃ 4, intelligent PID control, accuracy: ±0.2℃ Thermocouple PT100 anticorrosive type, 5, anticorrosive pottery material: ∮700 X420mm 6 - PVC plate is used to close the fence around the pottery cylinder 7, layman size: 800×800X600(mm) 8 - Motor mixing method, mixing rod is non-metallic material 9, equipped with water level ball valve (anti-corrosion material), can control the height of the water level 10, equipped with automatic water pump, can maintain a certain test water level 11, optional: 48V DC power supply 12, Optional: High voltage DC stability tester JN-DC-50305: DC voltage: DC0——5KV, can be recorded The leakage current in the test process, and form EXECL report
