Fully Automatic Ac Dc High Voltage Tester For Wires And Cables Qinsun - China

Standards ISO 14572, IEC 60529: International standards for wire insulation integrity and environmental testing.

UL 2556, CSA C22.2: North American safety requirements for wire and cable testing.

GB/T 3048, GB/T 18384: Chinese national standards for electrical performance and EV safety.

Equivalent Standards: VDE, ASTM D495, SAE J1678, and automotive OEM-specific protocols.

Main Parameters: 1 - Input voltage: 220V/50HZ

2 - Power: 5KVA

3 - Output voltage: 0.00～50.000KV

4 - Breakdown current: Can be arbitrarily set within the range of 1.0~100.0mA

5 - Voltage - rising speed: Can be arbitrarily set within the range of 100V~5000V/S

6 - Accuracy: Class 1.0

7 - Test time: Can be arbitrarily set within the range of 0.00~999.9H/M

8 - Dimensions of the control console: 800 X 800 X 1300mm, dimensions of the high - voltage transformer: 500 X 500 X 1000mm

9 - Weight: 150KG

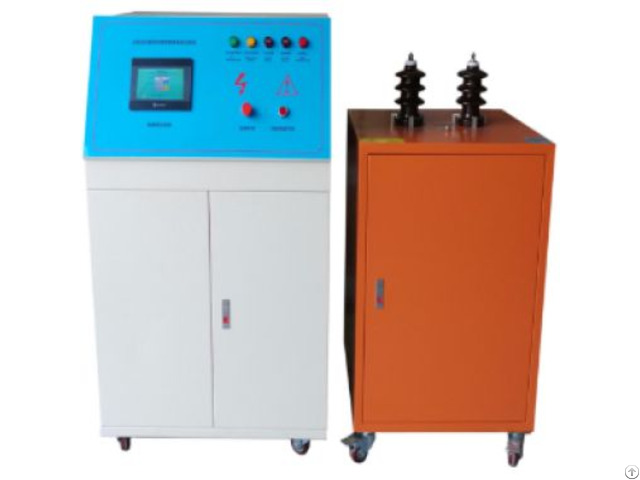

The fully automatic AC/DC high - voltage tester for wires and cables is specially used to test the insulation between wire cores or between wire cores and outer sheaths of finished wire and cable products.
