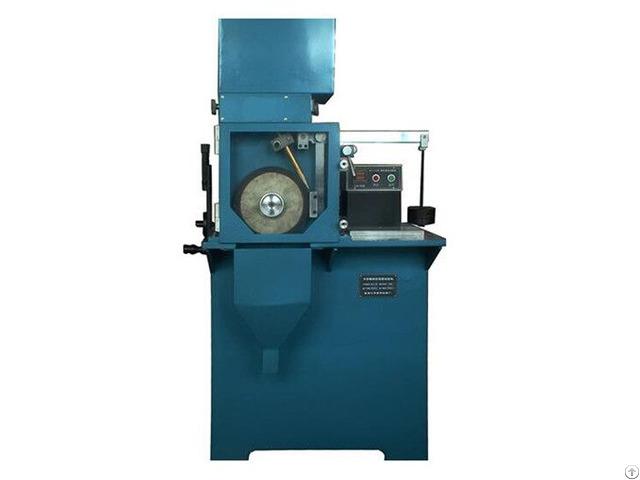

Abrasive Wear Tester - China
price: contact company for price
The wet – type rubber wheel abrasive wear testing machine is primarily employed to assess the wear – resistance of metal materials when they are in frictional contact with solids like sand, ores, and sediment.
Through these tests, the capabilities of various metal materials to resist abrasive wear can be ascertained, and investigations into the abrasive wear mechanism can be carried out.
This empowers the design, production, and scientific research departments related to mining machinery, construction machinery, transportation machinery, agricultural machinery, and so on to choose appropriate metal materials and manufacturing processes.
Standard
(1)ASTM G65 – 04：Standard Test Method for Measuring Abrasion Using the Dry Sand/Rubber Wheel Apparatus (2)GB/T 3960-1983：Test method for friction and wear of plastics by sliding Parameters
Description Details
Load 100 Newton
Disc speed 60 - 120 rpm
Sample feed 1 - 2 - 3 - 4 mm / turn
Sample diameter 2 - 3 - 4 mm
Auto-control system counting range 0-99999999 (can be stopped at a given number of revolutions)
Overall dimensions 560 × 540 × 1020mm
Weight 350Kg
