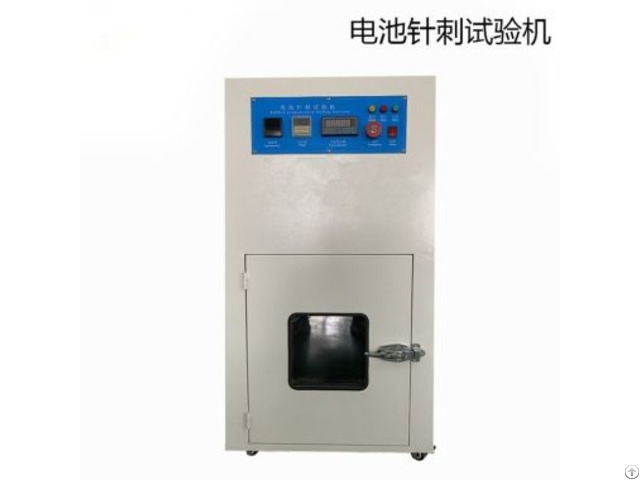

Battery Nail Penetration Test Chamber - China

Standard

GB/T 18332.2-2001 MT/T 1051-2007 GB/T 31485-2015 "Safety requirements and test methods for power batteries for electric vehicles" GB/T 31241-2014 　 "Safety requirements for lithium-ion batteries and battery packs for portable electronic products" UN38.3 "United Nations Manual of Transport Tests and Standards for Dangerous Goods" IEC62133 "Battery (group) composed of electric cores and safety requirements for use in portable equipment" UL 1642: 2012 "Lithium Battery Standard" Specifications

1 - ф2mm-ф8mm high-temperature resistant steel needles.

2 - Distance between the tip of the needle and the lower part: 250mm from the plane where the battery is placed.

3 - 3 - Clamping distance: 150mm 4 - 10-40mm/s speed, from the direction perpendicular to the battery pole plate through (steel needle stays in the battery) 5 - penetration force: about 2000KG 6 - force display: pressure sensing LED display 7 - Stroke: about 200mm 8 - driving mode: hydraulic drive (or motor drive) 9 - made into a box-type equipment device explosion-proof, fire prevention, corrosion resistance, easy to clean.

10 - explosion-proof box size (W × H × D): about 450 × 750 × 550mm 11 - explosion-proof box material: galvanized sheet baking paint treatment 12 - machine size: about 1640 × 570 × 730mm 13 - control box size: about 300 × 260 × 170mm 14 - weight: about 75KG 15 - power requirements: 1 ф220V, 50HZ 电池针刺试验机2 - jp g
