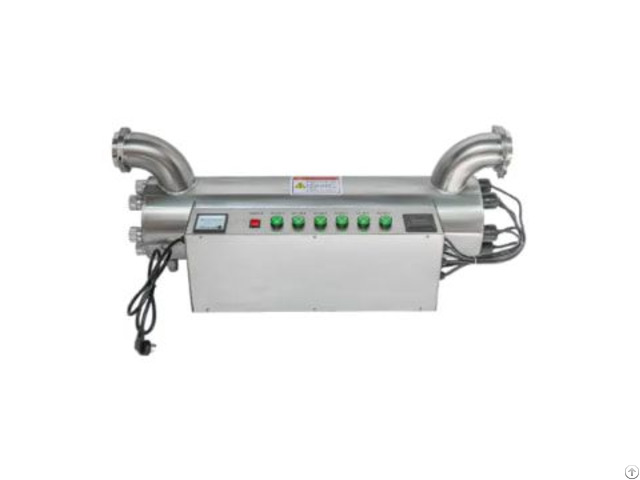

China 90 Degree Elbow Uv Sterilizer - China

The Inline UV Water Sterilizer is designed to provide efficient and reliable ultraviolet disinfection for pipeline water treatment systems.

This model features a specialized 90-Degree Elbow UV Sterilizer configuration that combines powerful UV sterilization with a space-saving elbow design, making it ideal for installations where pipeline direction changes are required.

Equipped with six high-output UV lamps, durable stainless steel construction, and a side-mounted control system, this Inline UV Water Sterilizer delivers consistent microbial reduction while maintaining stable water flow performance.

Suitable for drinking water systems, food processing facilities, swimming pools, laboratories, and commercial buildings, it offers an effective solution for continuous inline water disinfection and pipeline hygiene protection.

Product Advantages

● Highly Efficient Sterilization and Disinfection: Six lamps work in tandem, generating 720 watts of high-intensity ultraviolet light.

This 90-Degree Elbow UV Sterilizer achieves a 99.99% kill rate against common waterborne pathogens such as E.

coli, Staphylococcus aureus, and influenza viruses, quickly and thoroughly disinfecting water within pipes.

● Convenient Operation and Maintenance: The electrical control system is located on the side, with the control panel and core electrical components concentrated on the side of the equipment.

This allows users to easily check the operating status, adjust parameters, and perform routine maintenance after installation, eliminating the need to go to the front or back of the equipment, thus improving operational convenience.

● Adaptable to Special Pipeline Layouts: The inlet and outlet water outlets feature 90-degree elbows, making this 90-Degree Elbow UV Sterilizer perfectly suited to installation requirements at pipe corners.

No additional pipe elbows are needed, reducing water flow resistance and saving installation space, making it particularly suitable for pipeline bend installations.

● Stable and Reliable Operation: Utilizing high-quality lamps and electrical components, the circuit design is optimized for excellent water and corrosion resistance, ensuring long-term stable operation in humid pipe environments, reducing malfunctions, and extending equipment lifespan.

● Medium Flow Rate Compatibility: The configuration of 6 lamps and 720 watts of power is compatible with pipe diameters of DN65-DN150, meeting water treatment needs of 5-25 m³/h.

It achieves a good balance between disinfection efficiency and energy consumption in medium flow rate scenarios.

Main Functions

● Powerful Ultraviolet Sterilization: The 6 lamps emit 253.7nm wavelength ultraviolet light, densely distributed to form a sterilization zone.

As a high-performance 90-Degree Elbow UV Sterilizer, the system destroys microbial DNA and effectively eliminates various pathogenic microorganisms in water.

● 90-Degree Elbow Water Flow Guidance: The 90-degree elbow design at the inlet and outlet, combined with the internal flow guiding structure, ensures that the water flow is evenly distributed after entering the disinfection chamber at the bend, allowing for full contact with the ultraviolet light.

This avoids disinfection dead zones caused by water flow deflection, ensuring stable disinfection effects.

● Side-mounted electrical control: A side-mounted control panel and display screen allow for intuitive viewing of equipment operating status (such as lamp running time, fault prompts, etc.

).

It supports equipment start/stop, parameter settings, and other operations, offering convenient operation without the need for remote control.

● Operating Status Monitoring: Equipped with operating indicator lights and a display screen, it shows real-time equipment operating parameters.

In case of lamp failure, abnormal water flow, or other issues, it promptly issues an alarm signal to alert the user for timely action.
