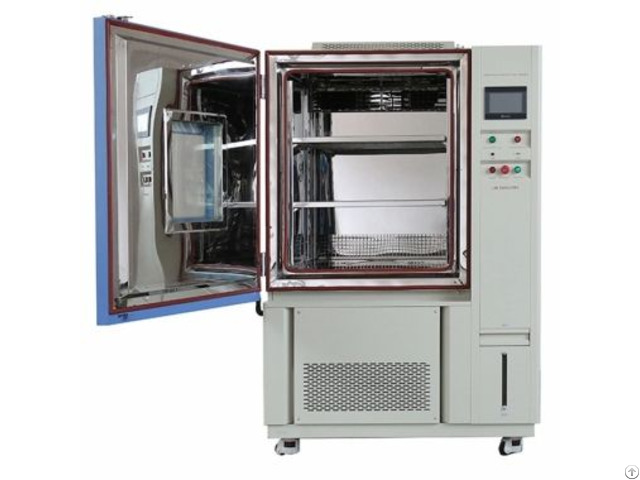

Cold Environment Chamber - China

Features and Benefits

1 - Ultra-wide high and low temperature range (-120°C to +150°C), meeting the testing requirements of multiple scenarios.

It operates stably for long periods in low-temperature conditions.

2 - High-precision temperature control (PID control and PT-100 Class A temperature sensor) ensures small temperature fluctuation ±0.5°C and uniform distribution ±1.0°C, improving the accuracy and consistency of test data.

3 - A variety of volumes and structural forms (customized), ranging from conventional equipment to walk-in types, to meet various test from material sample testing to overall machine evaluation.

4 - The fully touch interface, multi-segment program programming, data recording, USB export, Ethernet remote control and other operations facilitate long-term testing and tracking of experimental results.

Specifications

Model

STD CF-100 STD CF-225 STD CF-500 STD CF-800 STD CF-1000 Internal Dimension (mm)

400*500*500 500*600*750 700*800*900 800*1000*1000 1000*1000*1000 Overall Dimension (mm)

900*1050*1620 1000*1140*1870 1200*1340*2020 1300*1540*2120 1500*1540*2140 Interior Volume

100L 225L 500L 800L 1000L Temperature Range

-120℃ ~ +150℃ Temperature Fluctuation

± 0.5 ℃ Temperature Deviation

± 2.0 ℃ Cooling Rate

1 ℃ / min Heating Rate

3 ℃ / min Cooling system

Mechanical compression refrigeration system Refrigerating unit

Cascade compressor Controller

Programmable color LCD touch screen controller, Ethernet connection Safety Device

Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection Standard Configuration

1 Cable hole (Φ 50.

) with plug; 2 shelves
