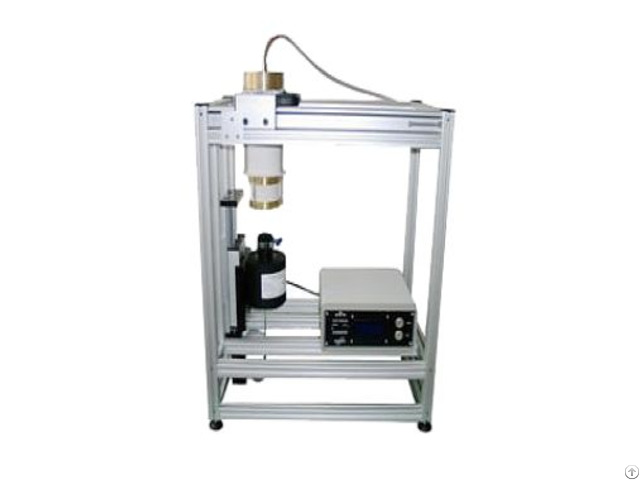

Contact Heat Resistance Tester - China

Product Details

The contact heat resistance tester evaluates materials' ability to withstand high-temperature contact heat by measuring the time required for specimen temperature to rise 10°C under specified pressure and heating conditions.

This critical time determination provides quantitative assessment for thermal protection material development and performance evaluation.

Compliance Standards

EN 702 - EN 12477 - EN 407 - ISO 12127 Scope of Application

Suitable for testing thermal protection performance of firefighter suits, heat-resistant gloves, and related materials.

Technical Specifications

1 - High-temperature heating element (Φ25.2mm) with: a.

Sensitive thermocouple sensor b.

Temperature settable from room temperature to 500°C 2 - Insulated heating element coating to prevent heat dissipation interference 3 - 49N contact force provided by weighted pressure plate 4 - Alumina-anodized temperature probe (Φ25mm, 5mm) with ±0.1°C accuracy 5 - Motorized sample holder system: a.

5mm/s precise motion control b.

Contact heating body at controlled speed 6 - One-touch testing with LED display showing: a.

Initial specimen temperature b.

Real-time temperature c.

Critical 10°C rise time (±0.1s resolution) 7 - Dimensions: 800×50×550mm (W×D×H) 8 - Power requirement: 230V 50Hz AC
