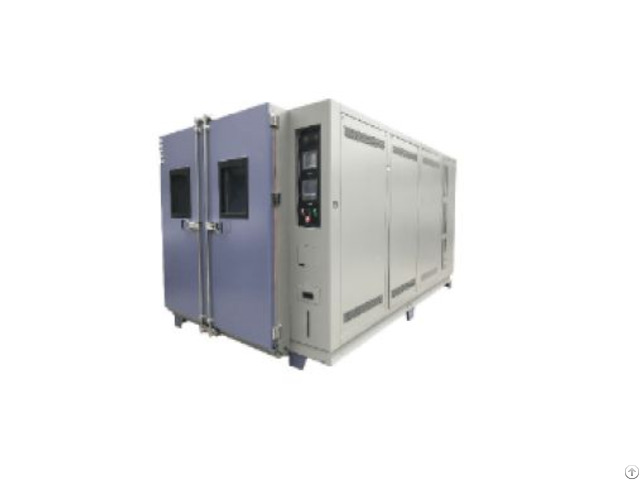

Damp Heat Testing Chamber For Photovoltaic Modules - China

Standard

IEC 61215: Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval UL 1073: Standard for Safety for Enclosures for Electrical Equipment ISO 16750-4: Road Vehicles – Environmental Conditions and Testing for Electrical and Electronic Equipment CE Certification (Conformité Européenne) Product Advantages

Extreme Environmental Simulation 85°C ±2°C / 85% RH Control: Replicates 10+ years of tropical aging in 1.000 hours (IEC 61215-compliant).

95% RH Max Humidity: Tests PID resistance and encapsulant degradation under extreme moisture.

Ultra-Stable Performance ±1°C Temperature Stability: Ensures consistent testing across 10.000+ cycles.

≤2°C Uniformity: Patented airflow design eliminates hot/cold spots.

Energy Efficiency 40% Lower Power Consumption: Advanced insulation and heat recovery systems.

ECO Mode: Auto-powers down during stabilization phases.

Product Features

Dual-Chamber Design: Isolated wet/dry zones for simultaneous multi-condition testing.

10” Touchscreen HMI: Preloaded IEC/UL test profiles with customizable hold times.

Self-Cleaning System: Automated condensation drainage and chamber drying.

Modular Expansion: Up to 1.500L capacity for full-size PV array testing.

Glovebox Compatibility: Oxygen/moisture control for sensitive electronics testing.

Technical Parameters

Parameter Specification

Temperature Range 30°C to 85°C (operational)

Temperature Stability ±1°C (at 85°C setpoint)

Temperature Uniformity ≤±2°C (empty chamber)

Humidity Range 30%–95% RH (non-condensing)

Humidity Stability ±2.5% RH (at 85% RH)

Chamber Volume 500L (standard), expandable to 1.500L

Power Supply 380V/415V 3-phase, 50/60Hz

Dimensions 1.200mm (W) × 1.800mm (D) × 2.000mm (H)

Weight 800 kg (net) / 1.200 kg (gross)
