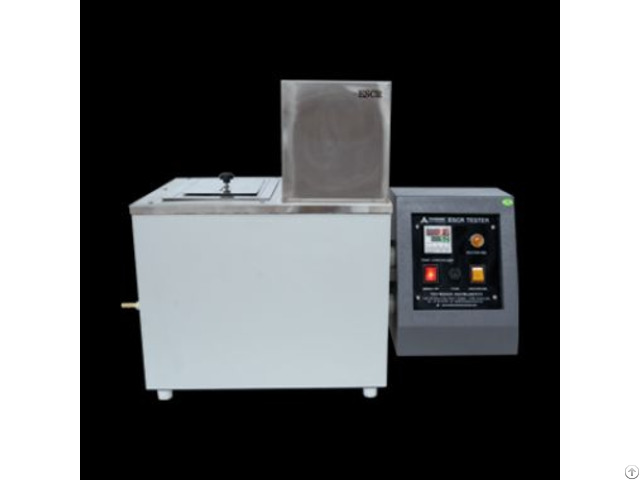

Environmental Stress Cracking Resistance Tester - China

Standard

ASTM D1693: Exclusively designed for bending beam and constant load tests on polyethylene and other thermoplastics.

ISO 22088-3: Configurable for notched specimen testing in aggressive media.

Product Advantages

1 - Unmatched Throughput 460-Sample Capacity: Test up to 460 specimens simultaneously (46 vessels × 10 samples/vessel).

High-Efficiency Design: 40% faster batch testing than competitive models.

2 - Precision Engineering Uniform Stress Application: Compliant with ASTM D1693’s 2.75mm bending beam specification.

PID Temperature Control: ±0.2°C stability across -10°C to 100°C range.

3 - User-Centric Workflow Smart Sample Prep: ASTM-compliant milling tools and prefabricated specimen jigs included.

Intuitive Touchscreen: Pre-loaded ASTM protocols with adjustable hold times (1–1.000 hours).

4 - Safety & Compliance Chemical-Resistant Construction: 316L stainless steel bath and PTFE-coated components.

Audit-Ready Reporting: 21 CFR Part 11 compliant data logging with electronic signatures.

5 - Adaptive Testing Solvent Versatility: Compatible with surfactants (soap), hydrocarbons (oils), and polar solvents (alcohols).

Technical Parameters

Specification Details

Temperature Range -10°C to 100°C (water/glycol bath)

Temperature Accuracy ±0.2°C (±0.1°C with calibration kit)

Sample Capacity 460 specimens (46 vessels × 10 samples)

Stress Load Range 0–50N (0.1N resolution)

Power Supply 220V/50Hz (110V/60Hz available)

Bath Volume 60L (expandable to 120L)

Dimensions (W×D×H) 1.200mm × 800mm × 1.850mm

Weight 280 kg (net)
