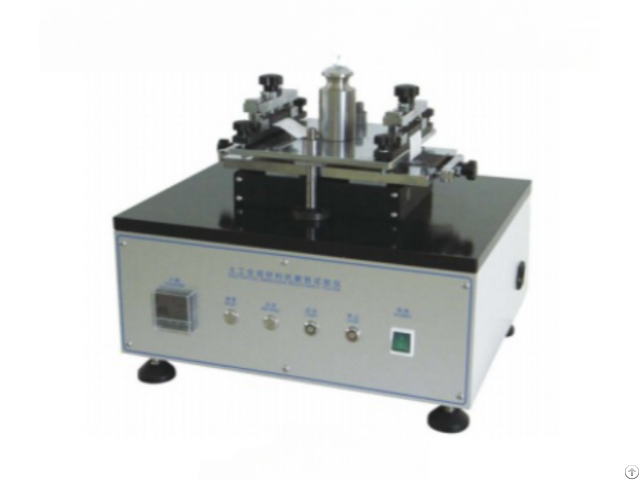

Geotextile Abrasion Tester - China
price: contact company for price
The wear resistance of geotextile and its related products was measured by emery cloth-sliding block method.
During the experiment, the sample is mounted on a fixed platform and rubbed with an abrasive with specified surface properties.
Under the condition of controlling the pressure and friction action, the abrasive moves in a straight line along the horizontal axis.
Wear resistance is expressed as the percentage loss of tensile strength of the specimen before and after friction.
Standard
GB/T 17636-1998: : Geotextiles and geotextile-related products–Determination of abrasion resistance–Sand paper/sliding block method 1S0 13427-1998: Geotextiles and geotextile-related products – Abrasion damage simulation (sliding block test) Parameters
Specification Details
Effective friction area 50x200mm, 75x200mm
Reciprocating frequency 90 reciprocating times/min; 10——115 reciprocating times/min
Reciprocating stroke 25 ± 1mm, 25 ± 1mm
Load 6 ± 0.01kg; 1 ± 0.01kg
Count range 1 to 9999 cycles (configurable)
Power supply AC 220V 50Hz
