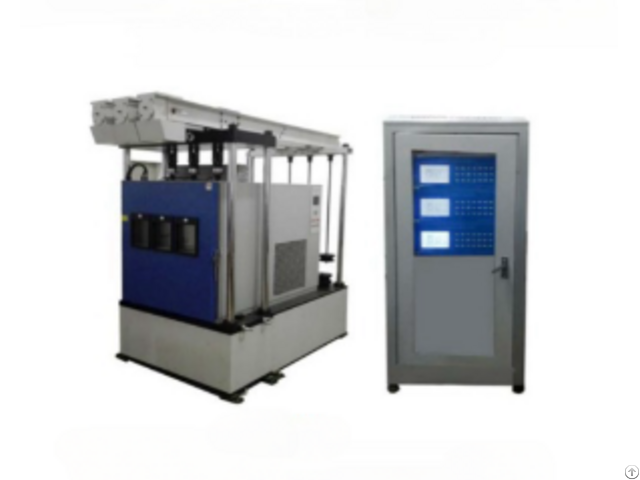

Geosynthetic Creep Tester Iso Fdis - China
price: contact company for price
The geosynthetic material creep testing system is used to determine the tensile creep performance of geosynthetic material products.
Application
DW1290 series geosynthetics creep test system is used to determine the tensile creep properties of geosynthetics products.
Standard
GB/T17637-1998: Geotextiles and geotextile-related products – Determination of the tensile creep and creep rupture behaviour ISO/FDIS 13431-1998: Geotextiles and geotextile-related products – Determination of tensile creep and creep rupture behaviour (Final Draft International Standard) ASTM D 5262-2007: Standard Test Method for Evaluating the Unconfined Tension Creep and Creep Rupture Behavior of Geosynthetics JTG E50 T1131-2006: Test Method for Tensile Creep and Creep Rupture Properties of Geosynthetics for Highway Engineering QB/T 2854-2007: Creep Testing and Evaluating Method on Plastic Geogrids Parameters
Specification Details
Number of stations 113 stations
Model Horizontal horizontal vertical
Loading mode Electronic; Electronic mechanical
Measuring range 0——50kN; 0——20kN
Resolution of force value 0.01kN
Force value accuracy ±1%FS
Maximum tensile displacement 550mm; 600mm
Displacement accuracy 0.03mm; 0.02mm
Speed 0.3mm——50mm/min
Temperature control (optional) -30——70℃ (can be customized)
Company Contact:
- Posted By: Qinsun Instruments Co., LTD
- Phone: +8618501763615
- Address: Minhang District, Shanghai , China
- Email:
- Website: https://www.qinsun-lab.com/
Published date: April 16, 2026
- Business Description: Qinsun Instrument focus on creative high quality textile testing instrument, with our powerful teamwork,constantly innovation, practical efficiency and excellent service, our mission is to supply our customers and distributors with the integrated solutions of lab testing.
