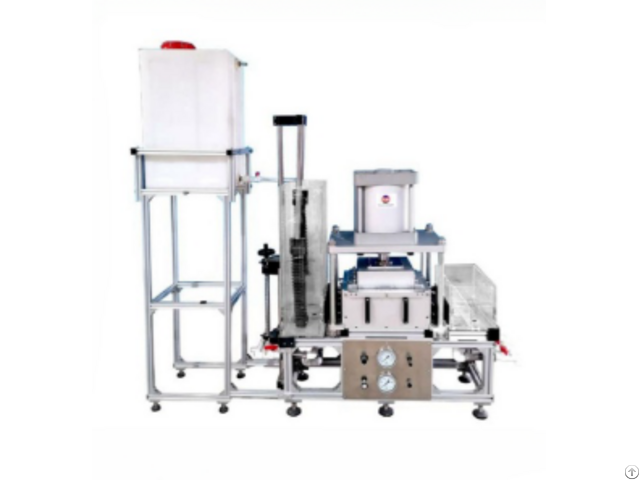

Geosynthetics Horizontal Penetration Testing Machine - China

The geosynthetic material horizontal permeability tester simulates water flow conditions in actual engineering projects to measure the material’s horizontal permeability coefficient and hydraulic conductivity, thus evaluating its drainage performance.

Application

Used to determine the horizontal permeability of geosynthetics under constant head flow conditions.

Under the conditions of hydraulic gradient and contact material, the normal pressure is changed to measure the water flow in the plane of geotextile and its related products.

Standard

GB/T17633-2019: Geotextiles and geotextile-related products – Determination of water flow capacity in their plane ISO/FDIS 12958-1998: Geotextiles and geotextile-related products – Determination of water flow capacity in their plane ASTM D4716-2007: Standard Test Method for Determining the (In-plane) Flow Rate per Unit Width and Hydraulic Transmissivity of a Geosynthetic Using a Constant Head SL/T 235-9-2012: Test Method for [Specific Property] of Geosynthetics ISO 11058: Geotextiles and geotextile-related products – Determination of water permeability characteristics normal to the plane, without load Parameters

Description Details

Pressure plate size (LxW) 305x305mm

Maximum specimen thickness 50mm

Seal rubber thickness 10 - 15 - 20 - 25mm

Compression mode Pneumatic compression

Normal pressure 0 – 600kPa adjustable

Pressure accuracy ±2%

Normal pressure resolution 5kPa

Head height adjustment mode Lifting screw, manual

Water head difference adjustment range 0 – 400mm continuously adjustable, water level meter display

Head difference accuracy ±1mm

Water storage tank volume 120L

Overall dimensions 2100x2050x650mm

Weight 380kg
