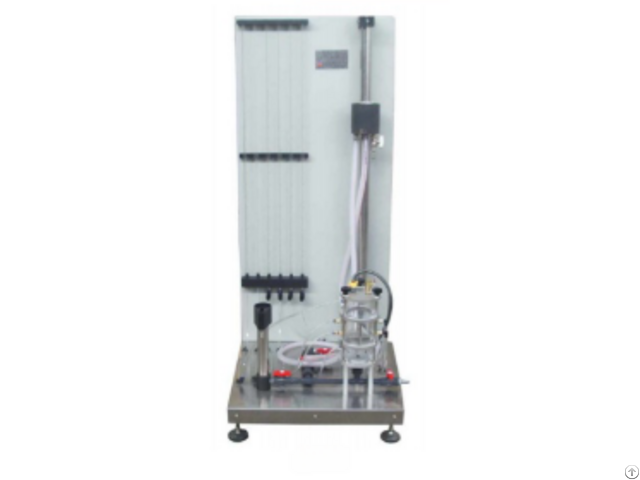

Geosynthetic Clogging Testing Machine - China
price: contact company for price
The method of gradient ratio is used to measure the permeability coefficient and permeability ratio of soil and geotextile system and its interface under no-pressure conditions, and the mud content of geotextile is measured to determine whether the geosynthetic material is used as a filter layer of some soil, and whether the blockage is not allowed.
Standard
ASTM D5101-2006: Standard Test Method for Measuring the Soil-Geotextile System Clogging Potential by the Gradient Ratio JTG E50 T1145-2006: Test Method for Clogging of Geosynthetics – Gradient Ratio Method (as part of JTG E50-2006) SL 235-2012: Specification for Test and Measurement of Geosynthetics Parameters
Instrument type floor type
The inner diameter of the test cylinder is 100mm
The sample height is 100mm
Head difference adjustment range 0——1050mm
Head difference accuracy ±1mm
Support net aperture 6mm
Overall dimensions 450x400x980mm(LxWxH)
Weight 75kg
