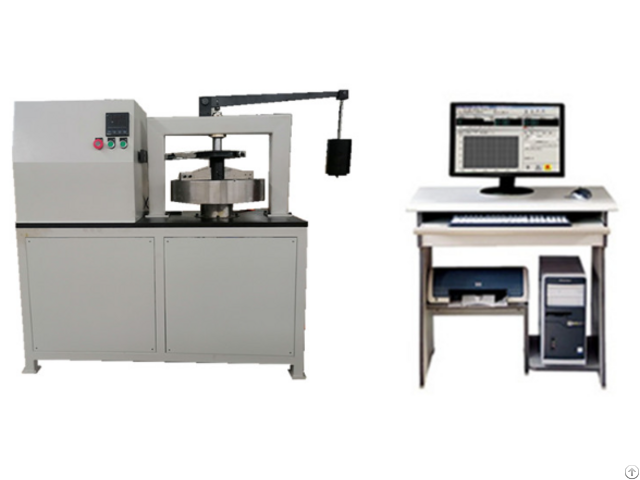

Constant Speed Friction Plate Tester - China

microcomputer control fixed-speed friction tester is mainly used to measure the friction coefficient and wear rate of automobile brake linings (brake pads), automobile clutch facings, oil drilling rig brake blocks and a variety of industrial machinery friction pads, motorcycle brake pads and other non-metallic friction materials.

Standards

(1)GB/T5764-1998: brake linings for automobiles.

(2)GB/T5764-1998: clutch facings for automobiles; (3)GB/T11834-2000: asbestos friction pads for industrial machinery; (4)SY/T5023-1994: brake blocks for oil drilling rigs.

Parameters

Items Details

Control System Independently researched and developed by Jinan.

Utilizes a laptop plus lower computer control software for closed-loop control experiments, enabling real-time control of the test process, collection and analysis of test data, automatic processing of test results, and drawing of curve analysis reports.

Temperature Measurement and control range: 0 ~ 260 ℃ (up to 350 ℃); Measurement accuracy: 1 ℃; Measurement error: 5 ℃

Friction Measurement range: 0 ~ 2000N; Measurement accuracy: 0.2N; Measurement error: 10.0N

Mo Disc Rotation 480 ~ 500r/min; Measurement accuracy: 1 turn; Measurement error: 1 turn

Power Main unit: 7.5kw; Heating pipe: 4.5kw; Fan: 120w (two fans, total 240w considered in total power calculation); Total power: 12.12kw

Friction Disk Material: Gray cast iron HT-250; Brinell hardness: 180~220HB; Pearlite structure

Specimen Not specified

Friction Radius R = 150mm

Positive Pressure 0.49Mpa – 0.98Mpa

Loading Weights 1.25kg – 1 piece; 2.5kg – 3 pieces

External Shape Dimensions Not specified

Control Cabinet 800×600×1000

Weight About 1000kg
