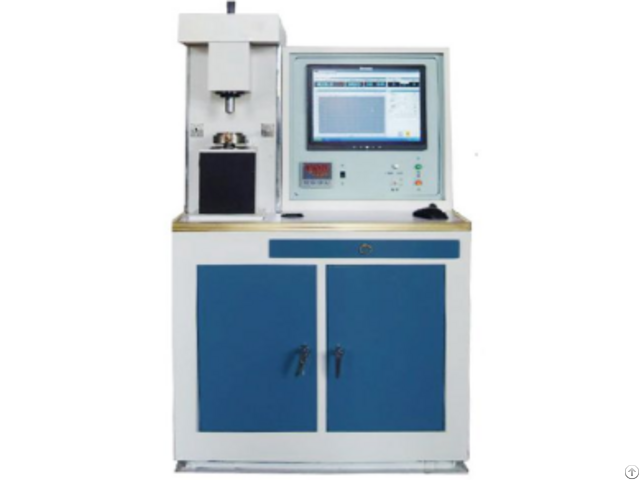

Thrust Bearing Rolling Friction And Wear Tester - China
price: contact company for price
The Thrust Bearing Rolling Friction and Wear Testing Machine is a laboratory device designed to evaluate the friction, wear, and load-bearing performance of thrust bearings under controlled conditions.
It simulates real operational environments by applying axial loads and rotating motion to the bearing, allowing measurement of friction torque, wear rate, temperature, and lubrication efficiency to ensure bearing reliability and durability.
Standards
(1)ASTM D3702 (2)ASTM G99 (3)ASTM G77 (4)ISO 18535 Technical data
Parameter Value
Maximum radial load 5 kN
Maximum spindle diameter 5 to 30 mm
Spindle taper DIN 69871A, ISO 50 taper
Rotary motion Speed 0 to 2000 rpm
Continuous torque 56.4 Nm
Peak torque 136 Nm
Oscillating motion Ranges variable 0 to +/-20°
Frequency 0.001 to 1 Hz
Axial motion Maximum thrust 5 kN
Stroke 0 to 30 mm
Company Contact:
- Posted By: Qinsun Instruments Co., LTD
- Phone: +8618501763615
- Address: Minhang District, Shanghai , China
- Email:
- Website: https://www.qinsun-lab.com/
Published date: April 16, 2026
- Business Description: Qinsun Instrument focus on creative high quality textile testing instrument, with our powerful teamwork,constantly innovation, practical efficiency and excellent service, our mission is to supply our customers and distributors with the integrated solutions of lab testing.
